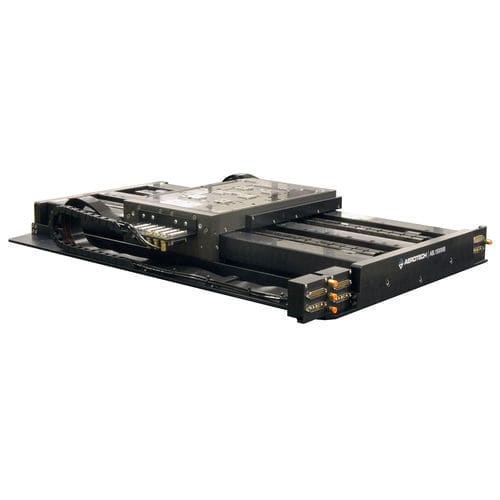

Electric actuator ABL1500WB
linearfor aircraftwith servo-motor

electric actuator
electric actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
linear
Applications
for aircraft
Technology
with servo-motor, direct-drive
Stroke

200 mm, 300 mm, 400 mm, 500 mm
(7.874 in, 11.811 in, 15.748 in, 19.685 in)

Description

Design Features Wide base for large offset loads Powerful dual linear motor drive Designed for high-performance scanning and inspection Active air preload on all air-bearing surfaces Linear encoder feedback provides sub-nanometer resolution High stiffness for heavy loads and excellent geometric performance Four models with travels from 200 mm to 500 mm The ABL1500WB is a wide-base version of the ABL1500 series air-bearing stage. The wider base makes the ABL1500WB ideally suited for applications with large offset loads, and it is ideal as the lower axis in XY stage systems with large travel. The ABL1500WB incorporates dual linear motors, effectively doubling the force output of a standard ABL1500 stage.
