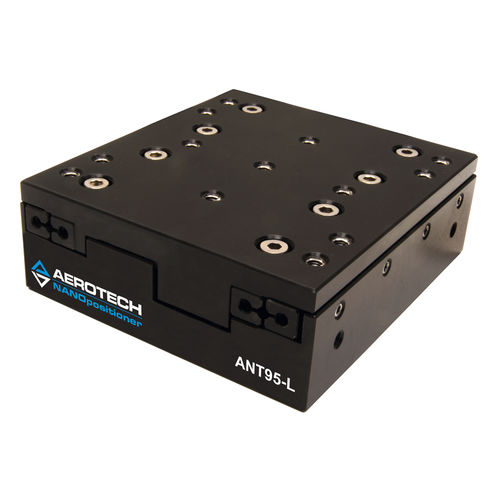

Electric actuator ANT95L Series
linearfor aircraftwith servo-motor

electric actuator
electric actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
linear
Applications
for aircraft
Technology
with servo-motor, direct-drive
Stroke

25 mm, 50 mm
(0.984 in, 1.969 in)

Description

Design Features Nanometer-level performance in a large travel format High resolution (1 nm), repeatability (75 nm) and accuracy (250 nm) In-position stability of <1 nm Anti-creep crossed-roller bearings High dynamic performance Introduction Aerotech’s ANT95L series stages are the world’s first nanometer-level positioning systems with greater than 25 mm travel. The ANT95L and ANT95L-PLUS crossed-roller stages are the best-in-class in combining speed, accuracy, resolution, repeatability, reliability and size, and are offered in two accuracy grades. These linear stages exhibit up to 5 g acceleration, 500 mm/s velocity, enhanced load capacity and are available with standardized, universal base mounting patterns that allow their use in a wide range of configurations.
