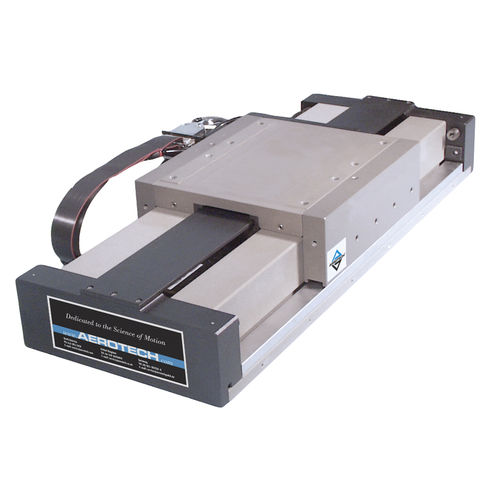

Electric actuator ABL2000
linearfor aircraftwith servo-motor

electric actuator
electric actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
linear
Applications
for aircraft
Technology
with servo-motor, direct-drive
Stroke

100 mm, 200 mm, 300 mm, 400 mm
(3.937 in, 7.874 in, 11.811 in, 15.748 in)

Description

Design Features Fully preloaded air-bearing Available with up to 1000 mm travel High-accuracy linear encoder feedback Complete noncontact design Ultra-smooth design for outstanding velocity stability The ABL2000 combines excellent pitch/yaw characteristics with the unsurpassed velocity control that is necessary for printing, imaging, semiconductor and photonic applications. Air-Bearing Design By utilizing a magnetic preload, the ABL2000 features a smaller cross-section than typical air-bearing stages without sacrificing load capability. The large air-bearing surfaces provide excellent stiffness, allowing for heavy loading. Proprietary manufacturing techniques result in a stage with unsurpassed pitch, roll and yaw characteristics. Manufactured in Aerotech’s state-of-the-art production facility, the ABL2000 is machined with exacting tolerances that are unachievable by conventional methods.
