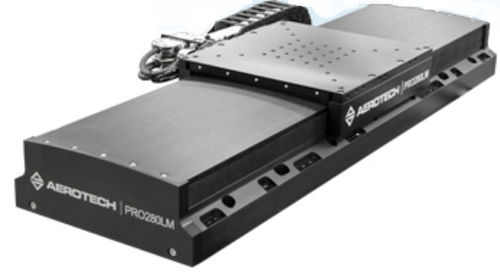

Electric actuator PRO280LM
linearfor aircraftdirect-drive

electric actuator
electric actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
linear
Applications
for aircraft
Technology
direct-drive
Stroke

Min.: 300 mm
(11.811 in)

Max.: 1,500 mm
(59.055 in)

Description

Design Features Improved second-generation design Rugged mechanical construction High-performance in a cost-effective package Direct-drive linear motor for ultra-precise motion Eight models with travels from 300 mm to 1500 mm Vacuum and cleanroom versions available Available with ThermoCompTM for high-performance in changing environments The PRO280LM is part of Aerotech’s second-generation PRO-LM stage series with many improvements and added features. Enhanced positioning specifications, improved stiffness, and competitive pricing make the PRO280LM stage the ideal choice for both medium and high-performance production applications. The PRO280LM design provides a good alternative to the PRO225LM for applications requiring higher stiffness, higher load capacity, or longer linear travels. Rugged Mechanical Construction A long-life recirculating linear guide bearing system and a low-friction sealing solution make the PRO280LM an attractive solution for industrial applications such as laser machining. The basic external construction of the PRO280LM design provides protection from debris while the side-seals prevent dirt and particulates from entering the stage. The curved hard-cover design provides a natural shape that prevents excessive debris from collecting on the stage.
