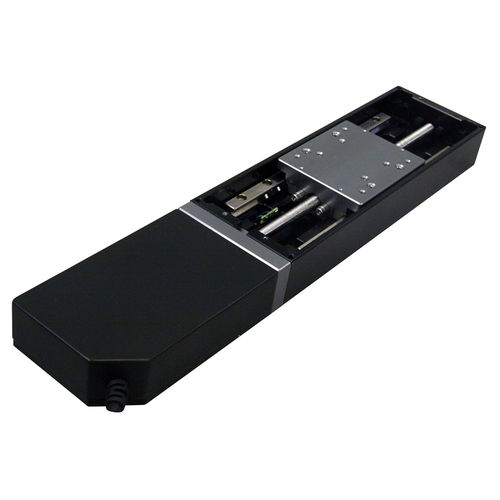

Electric actuator MPS75SL
linearfor aircraftwith servo-motor

electric actuator
electric actuator
electric actuator
electric actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
linear
Applications
for aircraft
Technology
with servo-motor, stepper, screw
Stroke

Min.: 25 mm
(0.984 in)

Max.: 100 mm
(3.937 in)

Description

Design Features Compact 75 mm width with travel to 100 mm Precision ground ball-screw drive DC servo or stepper motor Anti-creep crossed-roller bearings High resolution (0.1 µm), repeatability (±0.75 µm) and accuracy (±1.0 µm) High-vacuum compatible Optional bellows waycovers Compact multi-axis configurations The MPS75SL is a compact, high-performance linear positioning stage that is perfect for the confines of the laboratory while providing the high reliability required in a production environment. It is the ideal choice for measurement, testing, accurate alignment and component assembly. High Accuracy The precision ground ball-screw provides exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 0.1 micron. The DC servomotor is equipped with a rotary encoder. The anti-creep crossed-roller linear bearings provide smooth travel and excellent payload characteristics.
