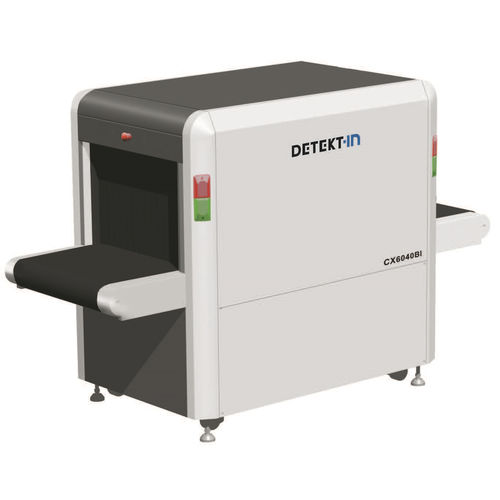

Baggage scanner CX6040BI

for airportX-raywith conveyor

CX6040BI Dual-Energy X-Ray Scanner – Single View – Automatic Explosives & Narcotics Detection – Intuitive Interface – Compact and Ergonomic Design
Compact dual-energy X-ray scanner from the CX Series featuring a single-view configuration.


Intelligent Automatic Detection
Automatic detection and alarms for explosives and narcotics based on advanced atomic number analysis with intelligent material classification.
Optional integrated TIP (Threat Image Projection) system enables continuous operator training and real-time monitoring of detection performance.


High-Performance Imaging
High-resolution 1280×1024 pixel display with up to 64× digital zoom for detailed image examination.
Advanced image processing functions: color/black & white, negative, high/low penetration, organic/inorganic material discrimination, and multi-absorption analysis.
40 AWG wire resolution and steel penetration up to 38 mm deliver world-class image quality.


Advanced Features and Safety
Built-in functions include bi-directional scanning, user management, system timer, automatic start-up self-test, and integrated diagnostics.
Ergonomic operator interface with professional keyboard ensuring optimal efficiency during inspection.
X-ray leakage fully compliant with international radiation safety standards.


Technical Specifications

• Tunnel size: 606 mm (W) × 420 mm (H)
• Maximum load: 160 kg
• Conveyor speed: 0.20 m/s
• Conveyor height: 680 mm
• Image storage capacity: up to 100,000 images
• Dimensions: 2042 × 850 × 1300 mm
• Weight: 510 kg
• Power supply: 100–240 VAC, 50/60 Hz, 0.8 kVA

ISO 9001:2015 and ISO 14001:2015 certified solution, ideal for environments requiring reliable baggage and parcel screening with optimized inspection performance.
