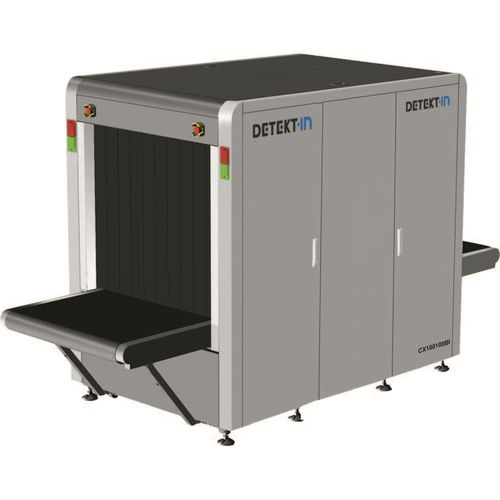

Baggage scanner CX100100BI

for airportX-raywith conveyor

CX100100BI Dual-Energy Single-View X-Ray Scanner – Optional Automatic Explosives & Narcotics Detection – Intuitive Interface – Large 1 m x 1 m Tunnel – Light Cargo Screening.


Next-generation dual-energy X-ray scanner designed for the inspection of baggage, suitcases, and small cargo in airports, railway stations, customs facilities, ports, and stadiums, featuring a modern and ergonomic design with a 1010 mm × 1005 mm tunnel.


Intelligent automatic detection
Optional automatic detection and alarm functions for explosives and narcotics.
Advanced atomic-number-based material classification: orange for organic materials, blue for metals, and green for mixed materials.
Optional integrated TIP (Threat Image Projection) system for continuous operator training and ongoing verification of detection performance.


High-performance imaging
High image quality with 38 AWG wire resolution and steel penetration up to 35 mm.
Advanced image processing: color/black & white, negative, high/low penetration, organic/inorganic discrimination, multi-absorptivity enhancement, and suspect material highlighting.
Progressive zoom up to 32× with step, continuous, and magnifier (local) enlargement modes for detailed analysis.


Advanced interface and safety
Ergonomic operator interface with professional keyboard to optimize inspection efficiency.
Images can be saved in BMP, JPG, GIF, and TIFF formats and exported to USB storage devices.
X-ray leakage complies with international health and safety standards, ensuring protection for both operators and the public.


Technical specifications

• Tunnel size: 1010 mm (W) × 1005 mm (H)
• Maximum load: 200 kg
• Conveyor speed: 0.20 m/s
• Conveyor height: 700 mm
• Image storage capacity: up to 50,000 images
• Display resolution: 1280 × 1024 pixels
• Dimensions: 3555 mm (L) × 1330 mm (W) × 1955 mm (H)
• Weight: 1420 kg

Certifications and applications
ISO 9001:2000 and ISO 14001:2004 certified solution with a large 1 m × 1 m tunnel, ideal for screening bulky baggage and small cargo in high-security environments.
