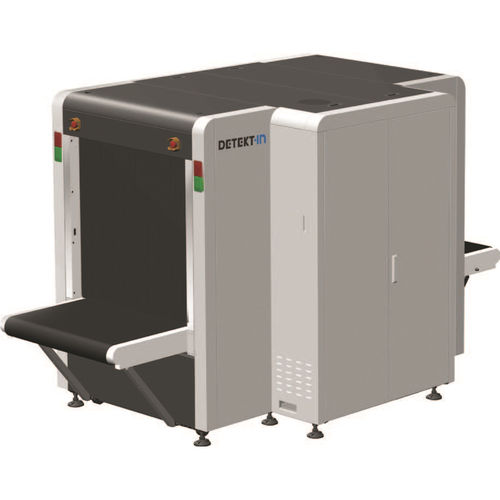

Baggage scanner CX100100DB

for airportX-raywith conveyor

CX100100DB Dual-Energy Dual-View X-Ray Scanner – Optional Automatic Explosives & Narcotics Detection – Intuitive Interface – Large 1 m × 1 m Tunnel – Advanced Dual-View Technology (New Design)
Next-generation dual-energy, dual-view X-ray scanner designed for inspecting large baggage, suitcases, and small cargo in airports, railway stations, customs facilities, and ports. The CX100100DB features advanced dual-view technology with dedicated monitors for each view, enabling optimal detection of dangerous objects hidden in overlapping areas.


Advanced Dual-View Technology
Dual-view configuration displays images on dedicated monitors for superior identification of suspicious items and contraband in dense, overlapping regions.
Modern, ergonomic design meets high-level security requirements while maximizing operational efficiency.


High-Performance Imaging
Superior image quality with 38 AWG wire resolution and steel penetration up to 35 mm.
High-resolution 1920 × 1080 pixel display for precise visualization.
Advanced image processing: color/black & white, negative, high/low penetration, organic/inorganic discrimination, multi-absorptivity enhancement, and suspect material highlighting.


Intelligent Automatic Detection
Optional automatic detection and alarms for explosives and narcotics, with material classification based on atomic number signatures.
Optional TIP (Threat Image Projection) system and high-density zone alerts for enhanced operator training and performance monitoring.


Advanced Interface and Safety
Ergonomic interface with professional keyboard to optimize operator efficiency.
Step and continuous zoom up to 64× with magnifier function; previous image recall capability.
Images savable in BMP, JPG, and PNG formats with USB transfer; storage for up to 100,000 images.


Technical Specifications

• Tunnel size: 1010 mm (W) × 1005 mm (H)
• Maximum load: 200 kg
• Conveyor speed: 0.20 m/s
• Conveyor height: 700 mm
• Image storage: up to 100,000 images
• Display resolution: 1920 × 1080 pixels
• Dimensions: 3555 × 1735 × 1985 mm
• Weight: 1790 kg

ISO 9001:2015 and ISO 14001:2015 certified solution with new-design dual-view technology and large tunnel, ideal for bulky baggage and small cargo in high-security environments.
