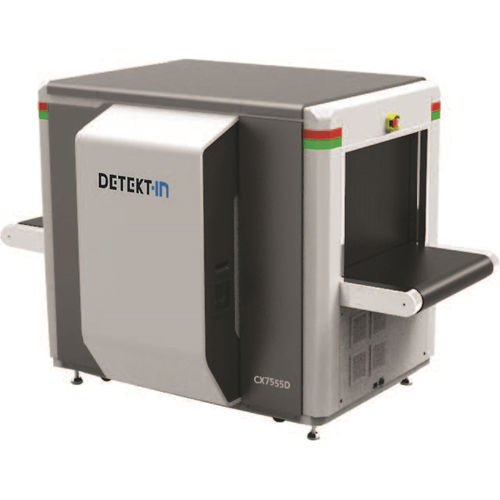

Baggage scanner CX7555D

for airportX-raywith conveyor

CX7555D Dual-Energy Dual-View X-Ray Scanner – Optional Automatic Explosives & Narcotics Detection – Intuitive Interface – Large Tunnel – Dual-View Technology.
Advanced dual-energy, dual-view X-ray scanner designed for the inspection of briefcases, carry-on baggage, and parcels in airports, customs, bus and railway stations, ports, major events, government offices, and stadiums.​


Advanced Dual-View technology
Dual-view design with images displayed on dedicated monitors, enabling efficient detection of dangerous items and contraband hidden in overlapping areas.
​Optional automatic detection and alarm functions for explosives and narcotics.​


High-performance imaging
High image quality with 40 AWG wire resolution and steel penetration up to 38 mm.
​Advanced image processing: color/black & white, negative, high/low penetration, organic/inorganic discrimination, multi-absorptivity enhancement, and suspect material highlighting.​
Progressive, continuous local zoom up to 32× for detailed examination.
Optional TIP (Threat Image Projection) system for continuous operator training and performance monitoring.​


Advanced functions and safety
Advanced material classification: orange for organic materials, blue for metals, and green for mixed materials.
​Images can be saved in BMP, JPG, and PNG formats and exported via USB storage devices.​
X-ray leakage complies with international health and radiation safety standards.​


Technical specifications

• Tunnel size: 755 mm (W) × 555 mm (H).
• Maximum load: 160 kg; conveyor speed: 0.20 m/s;
• Conveyor height: 750 mm.​
• Image storage capacity: up to 50,000 images;
• Display resolution: 1280 × 1024 pixels.​
• Dimensions: 2397 mm (L) × 1412 mm (W) × 1531 mm (H);
• Weight: 1100 kg.​

Certifications and applications
ISO 9001:2000 and ISO 14001:2004 certified solution featuring dual-view technology and a large tunnel, ideal for screening bulky baggage in high-security environments.
