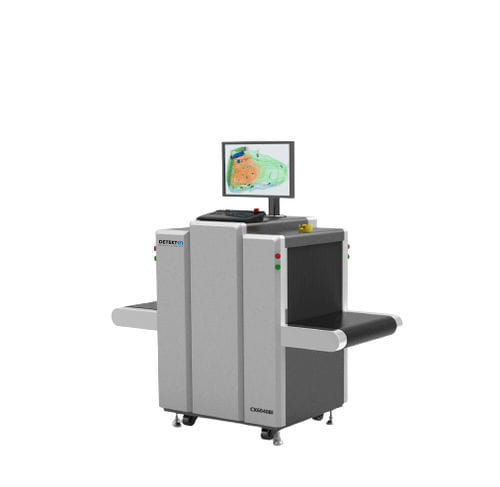

Baggage scanner CX6040BC

for airportX-raywith conveyor

CX6040BC Dual-Energy X-Ray Scanner– Automatic Explosives & Narcotics Detection – Intuitive Interface – Compact and Ergonomic Design


Compact X-ray scanner from the CX Series, designed for the inspection of carry-on baggage and parcels in airports, train stations, critical infrastructures, and large events.


Intelligent Automatic Detection
Automatic detection and alarms for explosives and narcotics based on atomic number analysis with intelligent material classification.
Integrated TIP (Threat Image Projection) system enables continuous operator training and ongoing performance verification of detection capabilities.


High-Performance Imaging
High-resolution 1280×1024 pixel monitor with up to 64× digital zoom for detailed examination.
Advanced image processing features: color/black & white, negative, high/low penetration, organic/inorganic material discrimination.
40 AWG wire resolution and steel penetration up to 38 mm ensure excellent image quality.


Operational Features and Safety
Built-in functions: bi-directional scanning, user management, system timer, automatic start-up self-test, and integrated diagnostics.
Ergonomic interface with a professional keyboard to optimize operator efficiency.
X-ray leakage fully compliant with international radiation safety standards.


Technical Specifications

• Tunnel size: 610 mm (W) × 420 mm (H)
• Maximum load: 160 kg
• Conveyor speed: 0.20 m/s
• Conveyor height: 700 mm
• Image storage capacity: up to 100,000 images
• Dimensions: 1660 × 800 × 1250 mm
• Weight: 360 kg
• Power supply: 100–240 VAC, 50/60 Hz, 0.8 kVA

ISO 9001:2015 certified solution, ideal for environments requiring reliable baggage and parcel screening.
