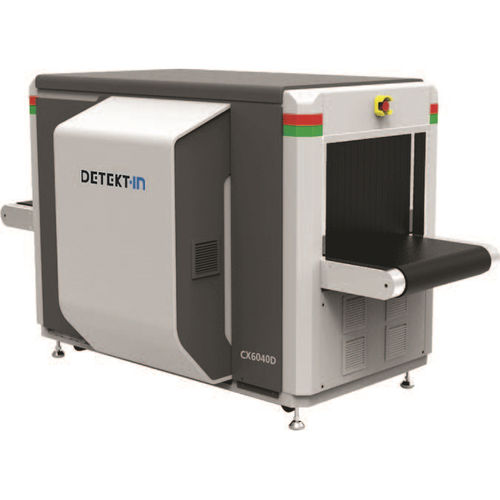

Baggage scanner CX6040D

for airportX-raywith conveyor

CX6040D Dual-Energy Dual-View X-Ray Scanner – Automatic Explosives & Narcotics Detection – Intuitive Interface – ECAC Certified – Compact and Ergonomic Design
Next-generation dual-energy, dual-view X-ray scanner designed for the inspection of carry-on baggage, small luggage, and parcels in airports, railway stations, customs facilities, ports, and stadiums.


Advanced Dual-View Technology
Dual-view design with dedicated monitors provides enhanced detection of threats and contraband hidden in overlapping areas.
Optional automatic detection and alarm functions for explosives and narcotics based on material analysis.


High-Performance Imaging
High image quality with 38 AWG wire resolution and steel penetration up to 34 mm.
Advanced image processing functions include color/black & white, negative, high/low penetration, organic/inorganic material discrimination, and atomic number-based material classification.
Progressive, continuous, and local zoom up to 32× enables precise and detailed image analysis.


Advanced Interface and Safety
Ergonomic operator interface featuring a professional keyboard for improved operational efficiency.
Images can be saved in BMP, JPG, or PNG formats and exported via USB storage devices.
X-ray leakage is fully compliant with all international radiation safety standards.


Verified Technical Specifications

• Tunnel size: 606 mm (W) × 420 mm (H)
• Maximum load: 160 kg
• Conveyor speed: 0.20 m/s
• Conveyor height: 680 mm
• Image storage capacity: up to 50,000 images
• Display resolution: 1280 × 1024 pixels
• Dimensions: 2392 mm (L) × 1157 mm (W) × 1300 mm (H)
• Weight: 820 kg

ISO 9001:2000 and ISO 14001:2004 certified solution featuring advanced dual-view technology for optimal threat detection in high-security environments.
