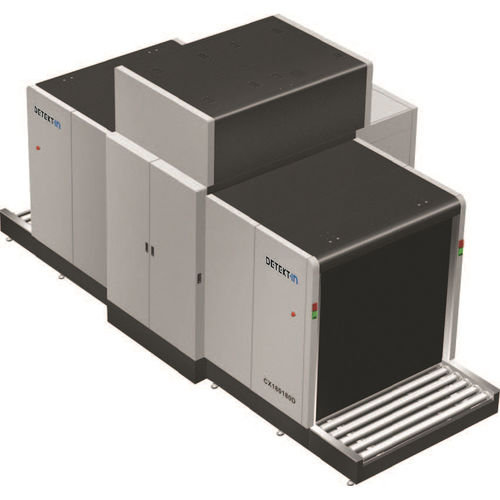

Parcel scanner CX180180D

for airportX-raywith conveyor

CX180180D Dual-Energy Dual-View X-Ray Inspection System – Optional Explosives & Narcotics Auto-Detection – Intuitive Interface – Extra-Large 1.84 m × 1.82 m Tunnel – Palletized Cargo Screening​
CX180180D represents new generation dual-view dual-energy X-ray inspection system for large parcels and pallet cargoes in airports, customs, railway stations, ports, logistics companies, and warehouses.
Dual-view design displays each view on dedicated monitors, making dangerous objects and contraband hidden in overlapping areas more likely to be found and located.​


Dual-View Technology for Large Volumes
Dual-view configuration exposes comprehensive baggage information with dedicated monitor displays for each view.
​Modern ergonomic design ensures efficient and professional X-ray screening operations for bulky cargo.​


Superior Image Quality
State-of-the-art technology delivers wire resolution of 38 AWG and steel penetration up to 50 mm.
​Display resolution of 1280 × 1024 pixels enables precise detail visualization. Advanced image processing includes color/B&W, negative, high/low penetration, organic/inorganic stripping, general enhancement, multi-absorptivity, and suspect material enhancement according to atomic number signatures.​


Intelligent Automatic Detection
Optional automatic detection and alarm of explosives and drugs.​
Optional Threat Image Projection (TIP) and high-density area alert functions support operator training and performance monitoring.​
Advanced Interface and Safety Ergonomic keyboard and user interface design ensure screening efficiency and professionalism.
​Supports stepwise, continuous, and local zoom up to 32× enlargement; preceding image recall. Images saved as BMP, JPG, PNG formats and transferred to USB storage devices; up to 50,000 images storage capacity.​
X-ray leakage less than 1 μSv/h at 5 cm from housing, meeting all international health and safety standards.​


Technical Specifications

• Tunnel Dimensions: 1843 mm (W) × 1820 mm (H)
• ​Conveyor Speed: 0.20 m/s;
• Height: 320 mm;
• Max Load: 2000 kg
• Standard Functions: Time/date display, user management, power-on self test, bi-directional scanning, system log
• ​Dimensions: 6336 mm (L) × 3102 mm (W) × 3143 mm (H)
• Weight: 5315 kg
• Power: 220 VAC ±15%, 50/60 Hz ±3 Hz, 2.5 kVA

ISO 9001:2000, ISO 14001:2004 certified with modular design and built-in diagnostics for reliable high-security logistics screening.
