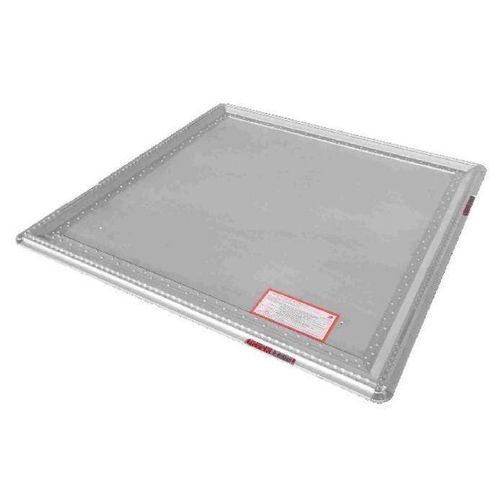

Main deck pallet PKC

for air cargofreight

Introduction
Aviation PAG pallets are unit load devices (ULDs) designed for integration on wide‑body aircraft main decks. They provide standardized deck interfaces and base dimensions to support high‑volume, bulky or consolidated air cargo while remaining compatible with airport handling systems and aircraft cargo locks. Typical PAG base dimensions include 3175 mm × 2438 mm, allowing efficient distribution of large shipments across the main deck. Construction normally uses high‑strength aluminum alloy with reinforced edges and fittings to withstand frequent handling and heavy loads. Models cover a range of gross capacities up to 6804 kg; the PKC variant described here has a gross capacity of 1588 kg. Certified to civil aviation standards (CAAC / FAA) and compatible with common wide‑body types such as Boeing 747, Boeing 777 and Airbus wide‑body models, PAG pallets are specified where main‑deck ULDs are required for volumetric or heavy cargo.

Product Description
Name: Aviation Air Cargo PKC Pallet
Type: Aircraft Pallet
IATA Code: PKC
NAS Code: 2K3P
Loading Capacity: 1588 KG
Size: 1562 mm (L) × 1534 mm (W)
Certification: CAAC / FAA
Applicable Airplane Model: B747, B777, B747F, Airbus and other wide‑body aircraft

Model

• PKC

Size / Max capacity examples (selected)
PAG/P1/2A4P — Model XD21 — Dimension 2235(L) × 3175(W) — Max capacity 6804 KG
PMC/P6/2M3P — Model XD22 — Dimension 2438(L) × 3175(W) — Max capacity 6804 KG
PLA/P9/2L3P — Model XD23 — Dimension 1534(L) × 3175(W) — Max capacity 3175 KG
PKC/-/2K3P — Model XD24 — Dimension 1562(L) × 1534(W) — Max capacity 1588 KG
FQA — Model XD25 — Dimension 2438(L) × 1534(W) — Max capacity 2450 KG

Technical specifications

• Name: Aviation Air Cargo PKC Pallet
• Commercial model / IATA code: PKC
• NAS code: 2K3P
• Typical size (PKC / XD24): 1562 mm (L) × 1534 mm (W)
• Example PAG base dimension (common): 3175 mm × 2438 mm
• Loading capacity (PKC / XD24): 1588 kg (other models listed up to 6804 kg)
• Construction: high‑strength aluminum alloy with reinforced edges and fittings (typical)
• Certification: CAAC / FAA
• Compatible aircraft: Boeing 747, Boeing 777, Airbus wide‑body models (main deck)
• Typical applications: main‑deck ULD for bulky and consolidated freight
