Lower deck pallet PRA

main deckfor air cargofreight

Product overview

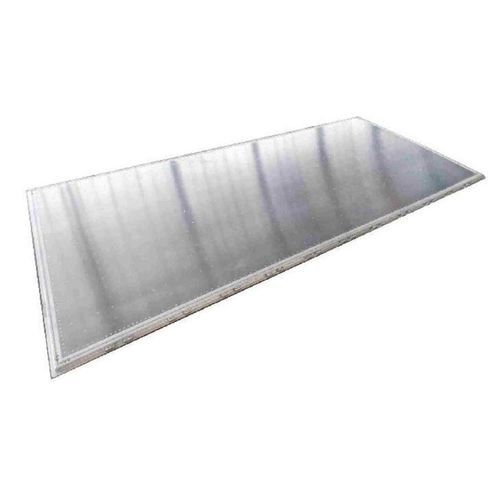

The Aviation PRA Pallet is a high-strength air cargo pallet designed to improve efficiency, safety, and reliability in modern cargo operations. With a standard dimension of 96 × 196 inches, the PRA pallet provides a large loading surface while supporting a maximum gross weight of 11,340 kg. Despite its impressive capacity, the pallet has a tare weight of only 445 kg, helping airlines maximize payload efficiency.
Built with premium aluminum alloys, the pallet frame is made from AL7003, the pallet sheet uses AL7021, and the corner connections are manufactured from AL2A14. This material combination delivers excellent strength, corrosion resistance, and long service life, even under demanding airport operating conditions.
The PRA pallet is certified to CAAC CTSO-C90d, FAA TSO-C90d, and AS36100-2R1P, ensuring full compliance with international aviation standards. These certifications demonstrate its suitability for global airline and cargo operations.
Designed for compatibility with airport cargo handling systems, the Aviation PRA Pallet offers dependable performance for freight forwarders, airlines, cargo terminals, and logistics providers. Its lightweight construction, durable design, and certified quality make it an ideal choice for efficient and secure air cargo transportation worldwide.

Model

• PRA

Key specifications

• Name: Aviation Air Cargo PRA Pallet
• Type: Aircraft Pallet (IATA code: PRA)
• Loading capacity: 11,340 KG
• Size (example): 2438 mm (L) × 4978 mm (W)
• Certifications: CAAC, FAA
• Typical construction: Aluminum alloy or composite components

IATA/ATA/NAS common models, dimensions & max capacity

• PAG / P1 / 2A4P | Model: XD21 | Dimension (mm): 2235 (L) × 3175 (W) | Max capacity (KG): 6804
• PMC / P6 / 2M3P | Model: XD22 | Dimension (mm): 2438 (L) × 3175 (W) | Max capacity (KG): 6804
• PLA / P9 / 2L3P | Model: XD23 | Dimension (mm): 1534 (L) × 3175 (W) | Max capacity (KG): 3175
• PKC / - / 2K3P | Model: XD24 | Dimension (mm): 1562 (L) × 1534 (W) | Max capacity (KG): 1588
• FQA | Model: XD25 | Dimension (mm): 2438 (L) × 1534 (W) | Max capacity (KG): 2450
• PGA | Model: XD26 | Dimension (mm): 2438 (L) × 6058 (W) | Max capacity (KG): 13600
• PRA | Model: XD27 | Dimension (mm): 2438 (L) × 4978 (W) | Max capacity (KG): 11340

Detailed images
Multiple detailed images are available showing pallet top and bottom views, construction details and application examples (images not included).

Additional product notes
Pallet maximum gross weights and suitability depend on pallet type and aircraft application. PRA pallets are designed for seamless integration with standard airport handling equipment and comply with applicable IATA specifications where indicated.

FAQ (selected)

• Q: Are you a trading company or manufacturer? A: We are a factory.
• Q: What is the delivery time? A: It depends on quantity; typically 1–2 months.
• Q: Do you provide samples or warranty? A: No samples; standard warranty is one year.
• Q: Payment terms? A: 30% T/T in advance, balance before shipment.

Technical specifications

• Model: PRA
• Product name: Aviation Air Cargo PRA Pallet
• Type: Aircraft Pallet (IATA code PRA)
• Standard size (example): 2438 mm (L) × 4978 mm (W)
• Loading capacity (example): 11,340 KG
• Certifications: CAAC, FAA
• Typical applicable aircraft: B747, B777, B747F and various Airbus models
• Warranty: Standard 1 year
• Typical lead time: 1–2 months depending on quantity
• Payment terms: 30% T/T in advance, balance before shipment
