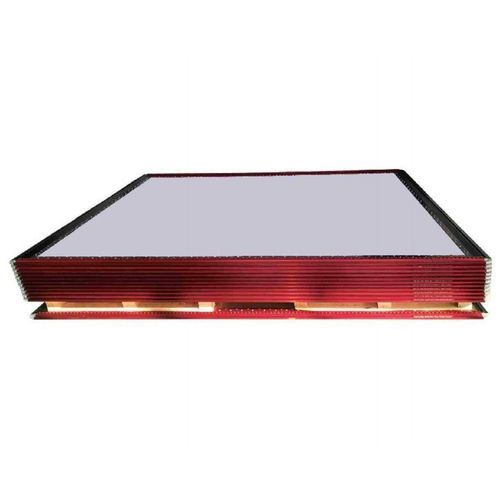

PMC/P6P pallet XD22

for air cargo

Introduction
The Aviation PMC Pallet is a standard air cargo pallet engineered to deliver outstanding strength, lightweight performance, and operational efficiency for airlines and cargo handling companies. Measuring 96 × 125 inches, it is designed to accommodate a wide range of cargo while maintaining compatibility with international aircraft cargo systems.
One of the pallet's key advantages is its light tare weight of only 97 kg, allowing operators to maximize payload capacity without compromising structural integrity. The PMC pallet supports a maximum gross weight of 6,804 kg, making it suitable for transporting heavy freight safely and efficiently.
Manufactured from high-quality aluminum alloys, the pallet frame is constructed with AL7003, the pallet sheet uses AL7021, and the corner connections are made from AL2A14. These premium materials provide excellent durability, corrosion resistance, and long-term reliability in demanding airport environments.
The Aviation PMC Pallet complies with internationally recognized standards, including CAAC CTSO-C90c, FAA TSO-C90c, and NAS3610-2M3P, ensuring safe and compliant operation across global air cargo networks.
Combining lightweight construction, high load capacity, and certified quality, the Aviation PMC Pallet is an ideal solution for airlines, freight forwarders, cargo terminals, and logistics providers seeking reliable and cost-effective unit load equipment for modern air cargo transportation.

Product Description
Name: Aircraft Aviation Air Cargo PMC Pallet
Type: Aircraft pallet (PMC / XD22)
IATA Code: PMC
ATA Code: P6
NAS Code: 2M3P
Loading capacity: 6804 kg
Size: 2438 mm (L) × 3175 mm (W)
Certification: CAAC, FAA
Applicable aircraft models: B747, B777, B747F, Airbus freighters and compatible widebody aircraft

Available Sizes & Max Capacity
XD21 (PAG/P1/2A4P): 2235 mm (L) × 3175 mm (W) — Max capacity 6804 kg
XD22 (PMC/P6/2M3P): 2438 mm (L) × 3175 mm (W) — Max capacity 6804 kg
XD23 (PLA/P9/2L3P): 1534 mm (L) × 3175 mm (W) — Max capacity 3175 kg
XD24 (PKC/-/2K3P): 1562 mm (L) × 1534 mm (W) — Max capacity 1588 kg
XD25 (FQA): 2438 mm (L) × 1534 mm (W) — Max capacity 2450 kg

Detailed Images
High-resolution photographs and technical images illustrate pallet deck construction, pallet fittings, lashing points and variant dimensions for load planning and inspection.

Technical specifications

• Model: PMC
• IATA Code: PMC
• ATA Code: P6
• NAS Code: 2M3P
• Loading capacity: 6804 kg
• Standard size (PMC / XD22): 2438 mm (L) × 3175 mm (W)
• Certifications: CAAC, FAA
• Applicable aircraft: B747, B777, B747F, Airbus and other compatible cargo aircraft
