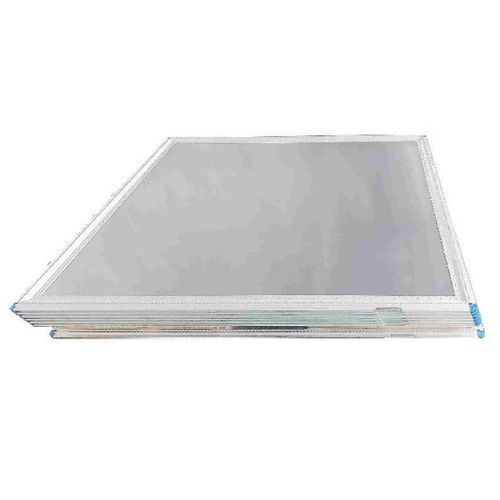

Main deck pallet PAG

for air cargofreight

Overview
The aviation PAG pallet is a mainstream standard air cargo ULD widely deployed for wide-body aircraft freight transport. It features overall dimensions of 88'' × 125'', a tare weight of 92 kg and an impressive maximum gross weight of 6804 kg, delivering outstanding load capacity for heavy air freight shipments.
Manufactured with premium aerospace-grade aluminum alloys, its pallet frame adopts AL7003, the pallet sheet uses AL7021, and corner connections are built from AL2A14. This robust lightweight construction provides excellent impact resistance and long service life amid repeated stacking and ground handling operations.
Compliant with CAAC TSO‑C90c, FAA TSO‑C90c and NAS3610‑2A4P standards, the PAG pallet meets global civil aviation specifications. Reinforced corner structures enhance stability during loading and transit. It is a trusted unit load device for airlines, ground handlers and freight forwarders to streamline international air cargo logistics.

Product Details
Name: Aviation Air Cargo PAG Pallet
Type: Aircraft Pallet
IATA Code: PAG
ATA Code: P1
NAS Code: 2A4P
Loading Capacity: 6804 KG
Size: 2235 mm (L) x 3175 mm (W)
Certification: CAAC, FAA
Applicable airplane models: B747, B777, B747F, Airbus wide-body models including A350

Available Models and Capacities

• PAG / P1 / 2A4P — Model: XD21 — Dimension (mm): 2235 (L) × 3175 (W) — Max capacity: 6804 KG
• PMC / P6 / 2M3P — Model: XD22 — Dimension (mm): 2438 (L) × 3175 (W) — Max capacity: 6804 KG
• PLA / P9 / 2L3P — Model: XD23 — Dimension (mm): 1534 (L) × 3175 (W) — Max capacity: 3175 KG
• PKC / - / 2K3P — Model: XD24 — Dimension (mm): 1562 (L) × 1534 (W) — Max capacity: 1588 KG
• FQA — Model: XD25 — Dimension (mm): 2438 (L) × 1534 (W) — Max capacity: 2450 KG

Technical specifications

• Model: PAG
• Product name: Aviation Air Cargo PAG Pallet
• Type: Aircraft Pallet (main-deck ULD)
• IATA Code: PAG
• ATA Code: P1
• NAS Code: 2A4P
• Typical loading capacity: 6804 KG
• Standard size example: 2235 mm (L) × 3175 mm (W)
• Other sizes/models and capacities: XD22 (2438 × 3175 mm — 6804 KG), XD23 (1534 × 3175 mm — 3175 KG), XD24 (1562 × 1534 mm — 1588 KG), XD25 (2438 × 1534 mm — 2450 KG)
• Certification: CAAC, FAA
• Compatible aircraft: Boeing 747, Boeing 777, B747F, Airbus wide-body models including A350
