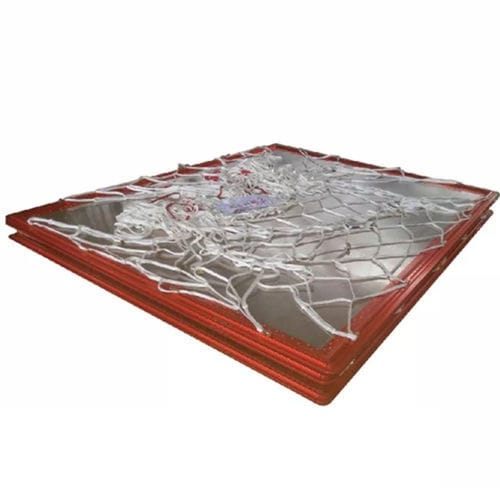

Pallet net CM-AGE-APN

for cargofor aircraft

Basic Information

• Product: Aviation Pallet Net
• Model (page): CM-AGE-APN
• Brand: CHEERSMETAL
• Available net types: 2A1N/2M2N Net, PLA Net, FQA Net

Specification
IATA/ATA/NAS Code | Model | Dimension(mm) | Deadweight(kg) | Max capacity(KG)
2A1N/2M2N Net | XD32B-1 | 2235/2438(L)*3175(W)*1626(H) | 11.6 | 6804
2A1N/2M2N Net | XD32B-2 | 2235/2438(L)*3175(W)*2082(H) | 12.9 | 6804
2A1N/2M2N Net | XD32B-3 | 2235/2438(L)*3175(W)*2438(H) | 14.2 | 6804
2A1N/2M2N Net | XD32B-4 | 2235/2438(L)*3175(W)*2997(H) | 16.9 | 6804
PLA Net | — | 3175(L)*1534(W)*1626(H) | 7 | 3175
FQA Net | — | 2448(L)*1534(W)*1626(H) | 6 | 2405

Product Pictures
Multiple product images are provided on the page (main view and additional nets / gallery) to show variants, dimensions and attachment details.

Technical features

• Model (page): CM-AGE-APN
• Brand: CHEERSMETAL
• Available net types and models: 2A1N/2M2N Net (XD32B-1 to XD32B-4), PLA Net, FQA Net
• Dimensions: see specification table above (dimensions in mm for length × width × height)
• Deadweight examples: from 6 kg (FQA Net) to 16.9 kg (XD32B-4)
• Maximum capacity examples: 2405 kg (FQA Net), 3175 kg (PLA Net), 6804 kg (XD32B 2A1N/2M2N variants)
• Use: designed to secure palletized air cargo in accordance with IATA/ATA/NAS pallet/container codes listed
• Ordering: multiple heights and types available; contact supplier for customization, certification documents and packing options
