Lower deck pallet PGA

main deckfor air cargofreight

Introduction

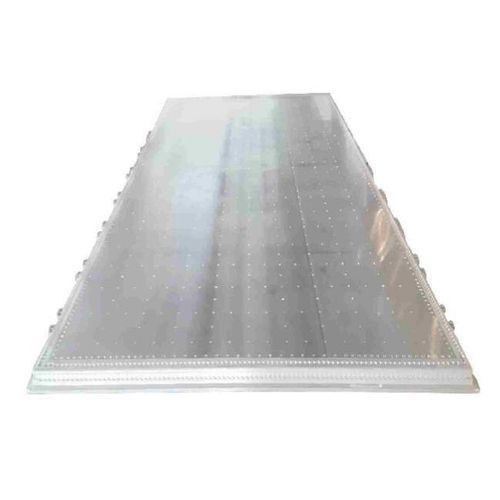

The PGA Air Cargo Pallet is a large-format unit load device (ULD) specifically designed for the main deck of wide-body freighters such as the Boeing 747F. With a base dimension of 96 × 238.5 inches (approx. 244 × 606 cm), it is available in two height profiles—Q6 (96 in / 244 cm) and Q7 (118 in / 300 cm)—to accommodate diverse cargo volumes. The pallet has a tare weight of approximately 540 kg and a maximum gross weight rating of 11,340 kg (about 25,000 lb), making it one of the highest-capacity pallets in air freight.
Structurally, the PGA pallet is built from premium aerospace‑grade aluminum alloys: the frame uses AL7003, the deck sheet uses AL7021, and the corner connections (corner fittings) are made of AL2A14. This carefully engineered combination ensures exceptional strength while maintaining a low deadweight.
The PGA pallet holds CAAC CTSO‑C90d and FAA TSO‑C90d certification and complies with SAE AS36100‑2G1P aerospace standards. Thanks to its extra‑long footprint and ultra‑high load capacity, it plays an irreplaceable role in transporting oversized and overweight shipments—such as automotive parts, aero engines, and heavy machinery—across global main‑deck air cargo operations.


Product Description
Name: Aviation Air Cargo PGA Pallet
Type: Aircraft pallet (unit load device)
IATA Code: PGA
Loading Capacity: 13600 KG
Size: 2438 mm × 6058 mm
Certification: CAAC / FAA
Applicable aircraft: B747, B777, B747F, Airbus wide‑body models and other compatible freighters/passenger aircraft

Detailed Images
High‑resolution photographs available show pallet structure, fittings, corner fittings, top surface, and application examples in cargo holds and on handling equipment.

Size Information
IATA/ATA/NAS Code | Model | Dimension (mm) | Max capacity (KG)

• PAG/P1/2A4P | XD21 | 2235 (L) × 3175 (W) | 6804
• PMC/P6/2M3P | XD22 | 2438 (L) × 3175 (W) | 6804
• PLA/P9/2L3P | XD23 | 1534 (L) × 3175 (W) | 3175
• PKC/-/2K3P | XD24 | 1562 (L) × 1534 (W) | 1588
• FQA | XD25 | 2438 (L) × 1534 (W) | 2450
• PGA | XD26 | 2438 (L) × 6058 (W) | 13600

FAQ (product-related)
Q: How long is delivery time for Aviation Air Cargo PGA Pallet?
A: Delivery depends on order quantity; typical lead time is 1–2 months after order confirmation.
Q: Do you provide samples? Warranty?
A: Samples are not provided for this ULD; standard warranty is one year subject to terms.
Q: What are the payment terms?
A: Common terms are 30% T/T in advance, balance before shipment.

Technical specifications

• Model: PGA
• Product name: Aviation Air Cargo PGA Pallet
• Type: Aircraft pallet (unit load device)
• IATA code: PGA
• Certifications: CAAC, FAA
• Maximum loading capacity (PGA model): 13600 kg
• Primary dimension (PGA model): 2438 mm (L) × 6058 mm (W)
• Materials: high‑strength aluminium alloys or composite materials (lightweight, durable)
• Compatible aircraft: wide‑body freighters and passenger aircraft such as B747, B777, B747F and Airbus wide‑body models
• Typical applications: bulk goods, irregular items, consolidated cargo; compatible with forklifts, container loaders and conveyor systems
