- Aircraft jack
- TECHMAN-HEAD GROUP

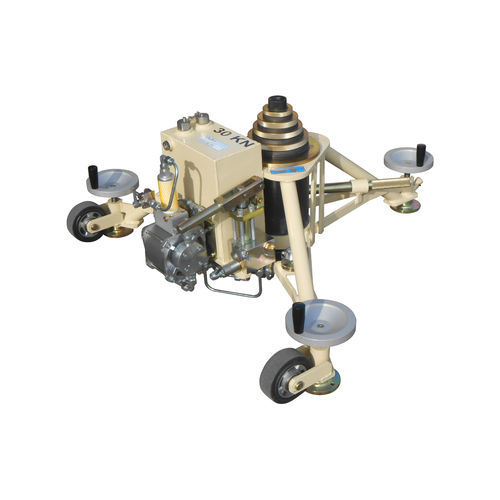

Aircraft jack TMH TR19hydraulicpneumatictripod
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Technology
- hydraulic, pneumatic
- Type
- tripod
- Lifting capacity
3.3 t
(3.64 us ton)- Lifting height
Max.: 71 in
Min.: 20 in
Description
Hydraulic stroke - 39 in
Screw extension - 12 in
Foot print - 22 in
Female shape of hemispherical point - f. 1″1/2
Fluid type - MIL-H-5606 mineral oil
Operating temperature - -13°F to +122°F
Dimensiondia. × h - 44 × 20 in
Weight - 264.5 lb
Description and features
Typical aircraft application:
Nose:
ATR42, ATR72, F27
Main features:
Foot plates on bearing
Hydraulique lifting by hand pump and/or hydropneumatic pump
Pneumatic lifting control (operator safety device)
Verticality by bubble level
Dual flow hand pump
Catalogs
TMH TR19
2 Pages
