- Aircraft jack
- TECHMAN-HEAD GROUP

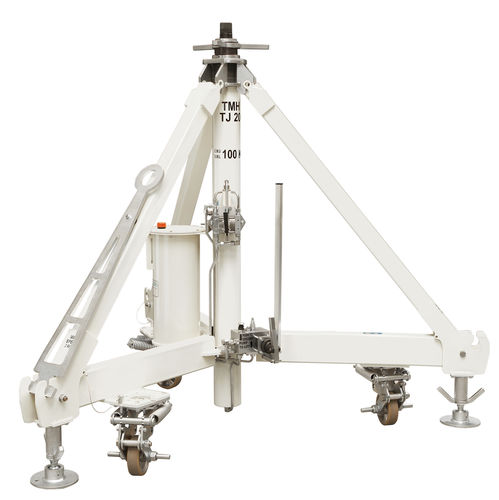

Aircraft jack TMH TJ20 hydraulicpneumatictripod
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Technology
- hydraulic, pneumatic
- Type
- tripod
- Lifting capacity
11.3 t
(12.46 us ton)- Lifting height
Min.: 1,850 mm
(73 in)Max.: 3,445 mm
(136 in)
Description
Hydraulic stroke - 56 in
Screw extension - 7 in
Foot print - 40 in
Female shape of hemispherical point - f. 1″1/2
Fluid type - MIL-H-5606 mineral oil
Operating temperature - -13°F to +122°F
Dimensions l × w × h - 71 × 81 × 73 in
Weight - 969 lb
Description and features
Typical aircraft application:
Nose: A320 CEO family (A318, A319, A320, A321) + NEO
Main features:
Foot plates on bearing
Hydraulique lifting by hand pump and/or hydropneumatic pump
Pneumatic lifting control (operator safety device)
Verticality by bubble level
Removable Towbar mountable on any tripod leg
Automatic descent speed control (loaded and unloaded)
Dual flow hand pump
Catalogs
TJ20
2 Pages
