- Aircraft jack
- TECHMAN-HEAD GROUP

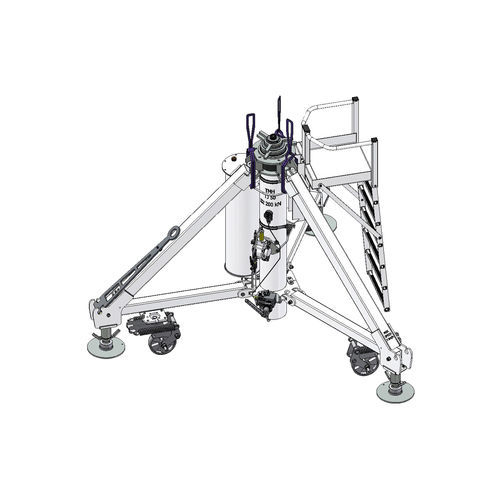

Aircraft jack TMH TJ50 hydraulicpneumatictripod
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Technology
- hydraulic, pneumatic
- Type
- tripod
- Lifting capacity
22.5 us ton
(20.41 t)- Lifting height
Max.: 205 in
Min.: 83 in
Description
Hydraulic stroke - 121 in
Foot print - 62 in
Female shape of hemispherical point - f. 1″1/2
Fluid type - MIL-H-5606 mineral oil
Operating temperature - -13°F to +122°F
Description and features
Typical aircraft application:
Nose: A300, A310,
A330-200-300,
A340-200-300-500-600,
A350-900-1000,
B787-8-9
Main features:
Foot plates on bearing
Hydraulique lifting by hand pump and/or hydropneumatic pump
Pneumatic lifting control (operator safety device)
Verticality by bubble level
Removable Towbar mountable on any tripod leg
Automatic descent speed control (loaded and unloaded)
Dual flow hand pump
