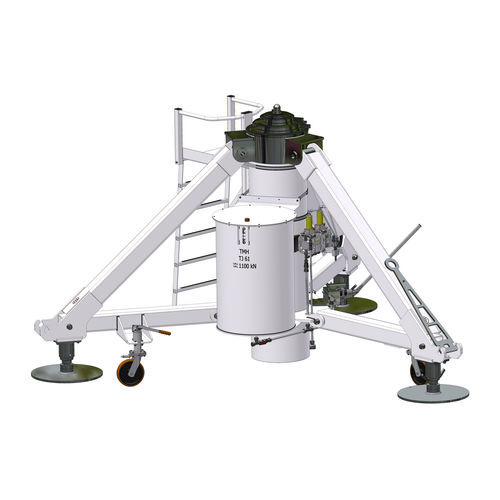

Aircraft jack TMH TJ61hydraulicpneumatictripod
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Applications
- for aircraft
- Technology
- hydraulic, pneumatic
- Type
- tripod
- Lifting capacity
123.6 t
(136.25 us ton)- Lifting height
Max.: 260 in
Min.: 95 in
Description
Hydraulic stroke - 125 in
Screw extension - 39.5 in
Foot print - 78.5 in
shape of hemispherical point - f. 2″1/2 & m. 2″1/2
Fluid type - MIL-H-5606 mineral oil
Operating temperature - -13°F to +122°F
Dimensions l × w × h - 129 × 145 × 95.2 in
Description and features
Typical aircraft application:
Wings: A300, A310,
A330-200-300,
A340-200-300-500-600,
A350-900-1000,
B747, B767, B777, B787
Main features:
Foot plates on bearing
Hydraulique lifting by hand pump and/or hydropneumatic pump
Pneumatic lifting control (operator safety device)
Verticality by bubble level
Removable Towbar mountable on any tripod leg
Automatic descent speed control (loaded and unloaded)
Dual flow hand pump
