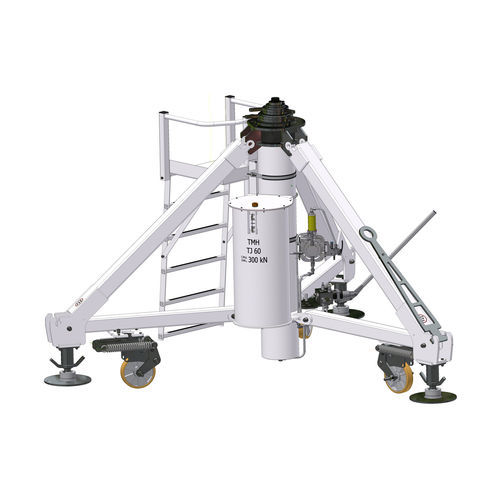

Aircraft jack TMH TJ60hydraulicpneumatictripod
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Applications
- for aircraft
- Technology
- hydraulic, pneumatic
- Type
- tripod
- Lifting capacity
33.7 t
(37.15 us ton)- Lifting height
Min.: 82 in
Max.: 207 in
Description
Hydraulic stroke - 117 in
Screw extension - 7.5 in
Foot print - 62 in
Female shape of hemispherical point - f. 2″1/2
Fluid type - MIL-H-5606 mineral oil
Operating temperature - -13°F to +122°F
Dimensions l × w × h - 106.7 × 121.1 × 82.3 in
Description and features
Typical aircraft application:
Nose: A300, A310,
A330-200-300,
A340-200-300-500-600,
A350-900-1000,
B747, B767, B777, B787
Main features:
Foot plates on bearing
Hydraulique lifting by hand pump and/or hydropneumatic pump
Pneumatic lifting control (operator safety device)
Verticality by bubble level
Removable Towbar mountable on any tripod leg
Automatic descent speed control (loaded and unloaded)
Dual flow hand pump
