Screw extension - 24 in
Foot print - 52 in
Female shape of hemispherical point - f. 1″1/2
Fluid type - MIL-H-5606 mineral oil
Operating temperature - -13°F to +122°F
Dimensions l × w × h - 68 × 76 × 67 in
Weight - 2868 lb

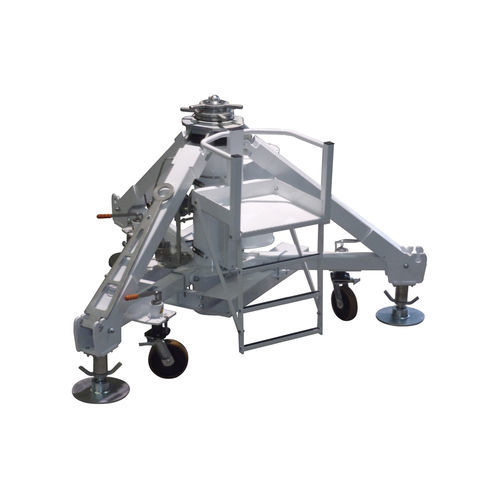

DESCRIPTION AND FEATURES
Typical aircraft application:
Nose: A330, A340, A350, BELUGA XL
Wings: A320 CEO family (A318, A319, A320, A321) + NEO,
B737-100 → 900 + MAX
Main features:
Foot plates on bearing
Hydraulique lifting by hand pump and/or hydropneumatic pump
Pneumatic lifting control (operator safety device)
Verticality by bubble level
Removable Towbar mountable on any tripod leg
Automatic descent speed control (loaded and unloaded)
Dual flow hand pump
