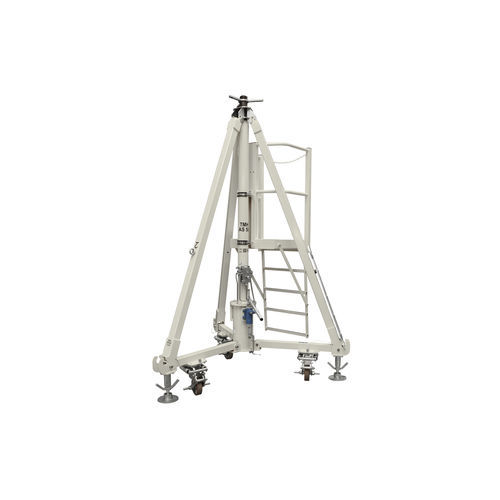

Aircraft jack TMH AS50 hydraulicpneumatictripod
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Applications
- for aircraft
- Technology
- hydraulic, pneumatic
- Type
- tripod
- Lifting capacity
7 t
(7.72 us ton)- Lifting height
Min.: 110 in
Max.: 183 in
Description
Hydraulic stroke - 73 in
Foot print - 57 in
Female shape of hemispherical point - f. 1″1/2
Fluid type - MIL-H-5606 mineral oil
Operating temperature - -13°F to +122°F
Dimensionss l × w × h - 92 × 86 × 118 in
Weight - 1000 lb
Description and features
Typical aircraft application:
Tail:A320 CEO family (A318, A319, A320, A321) + NEO
Main features:
Foot plates on bearing
Hydraulique lifting by hand pump and/or hydropneumatic pump
Pneumatic lifting control (operator safety device)
Verticality by bubble level
Removable Towbar mountable on any tripod leg
Dual flow hand pump
