- TECHMAN-HEAD GROUP

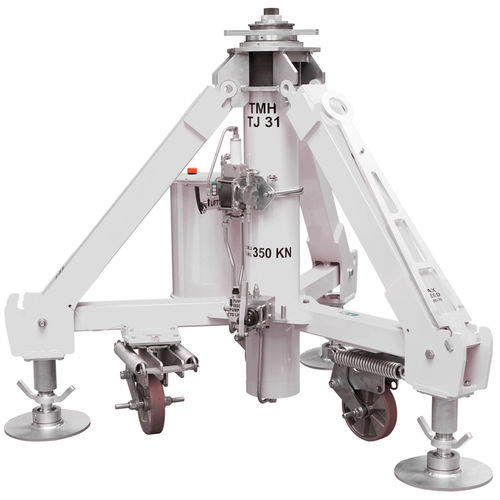

Aircraft jack TMH TJ31 hydraulicpneumatictripod
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Technology
- hydraulic, pneumatic
- Type
- tripod
- Lifting capacity
39.3 t
(43.32 us ton)- Lifting height
Max.: 122 in
Min.: 67 in
Description
Foot print - 36 in
Female shape of hemispherical point - f. 1″1/2
Fluid type - MIL-H-5606 mineral oil
Operating temperature - -13°F to +122°F
Dimensions l × w × h - 68 × 76 × 67 in
Weight - 1929 lb
DESCRIPTION AND FEATURES
Typical aircraft application:
Wings: B737-100 → 900 + MAX, BREGUET ATLANTIC
Main features:
Foot plates on bearing
Hydraulique lifting by hand pump and/or hydropneumatic pump
Pneumatic lifting control (operator safety device)
Verticality by bubble level
Removable Towbar mountable on any tripod leg
Automatic descent speed control (loaded and unloaded)
Dual flow hand pump
