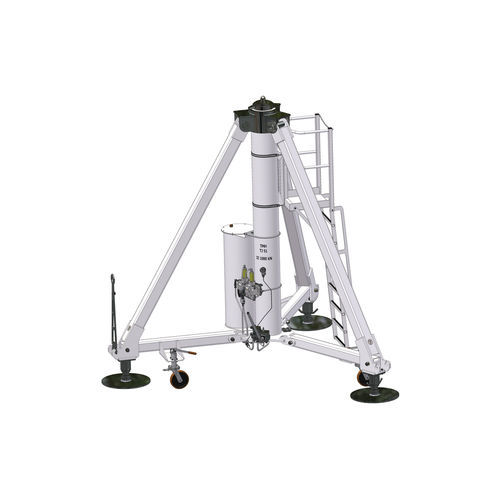

Aircraft jack TMH TJ51hydraulicpneumatictripod
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Technology
- hydraulic, pneumatic
- Type
- tripod
- Lifting capacity
112.3 us ton
(101.88 t)- Lifting height
Max.: 260 in
Min.: 151 in
Description
Hydraulic stroke - 108 in
Foot print - 78 in
Male shape of hemispherical point - m. 2″1/2
Fluid type - MIL-H-5606 mineral oil
Operating temperature - -13°F to +122°F
Description and features
Typical aircraft application:
Wings: A300, A310,
A330-200-300,
A340-200-300-500-600,
A350-900-1000
Main features:
Foot plates on bearing
Hydraulique lifting by hand pump and/or hydropneumatic pump
Pneumatic lifting control (operator safety device)
Verticality by bubble level
Removable Towbar mountable on any tripod leg
Automatic descent speed control (loaded and unloaded)
Dual flow hand pump
