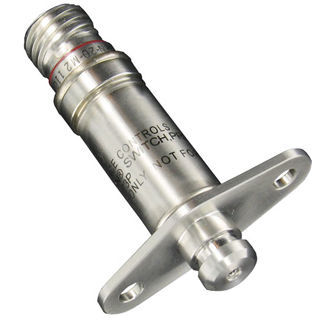

Absolute pressure switch 1173P
miniaturefor aircraft

absolute pressure switch
absolute pressure switch
Add to favorites
Compare this product


Characteristics

Pressure type
absolute
Other characteristics
miniature
Domain
for aircraft
Pressure range

Min.: 15 psi

Max.: 105 psi

Description

Product Description Miniature Pressure Switch. Set point, 15 - 105 psig; Deadband, 3.5 psi or 15%), whichever is greater, to 45% of the set point. Proof pressure, up to 300 psig. - This hermetically sealed gage switch with welded stainless steel construction is designed for the most hostile vibration, shock, temperature and environmental conditions. Specifications - Set point range from 15 to 105 psig - Deadband range from 3.5 psi or 15%, whichever isgreater, to 45% of the set point - Proof pressure up to 300 psig - Pressure capsule all stainless steel, heliarc welded andleak proof to 1 X 10-9SCC/SEC - SPDT snap action switch element - Electrical chamber hermetically sealed per MIL-HDBK-5400 Para. 3.8 - Temperature Range - Ambient-65°F to +275°F (-54°C to +135°C) - Media-65°F to +400°F (-54°C to +204°C) - Vibration capability to 15G’s
