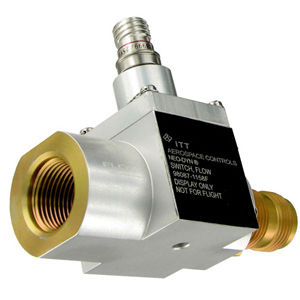

Coolanol flow switch 1158F
for fuelfor oilVenturi

coolanol flow switch
coolanol flow switch
Add to favorites
Compare this product


Characteristics

Medium
for coolanol, for fuel, for oil
Other characteristics
Venturi
Domain
for aircraft
Flow

Max.: 7 us gal/min (26 l/min)

Min.: 1 us gal/min (4 l/min)

Description

Product Description Fluid Flow Switch. Set point, .5 to 7 GPM. Deadband, .08 GPM or 15%, whichever is greater, to 45% of the set point. Proof pressure, up to 275 psig. - This switch is a low pressure drop venturi design and is ideally suited for coolant, oil and fuel flow applications. Specifications - Set point range from 0.50 to 7.0 GPM - Deadband range from .08 GPM or 15%, whichever is greater, to 45% of the set point - System pressure up to 175 psig - Proof pressure up to 275 psig - Electrical chamber hermetically sealed per MIL-HDBK-5400 Para. 3.8 - Temperature Range - Ambient-40°F to +165°F (-40°C to +70°C) - Media-40°F to +165°F (-40°C to +70°C)
