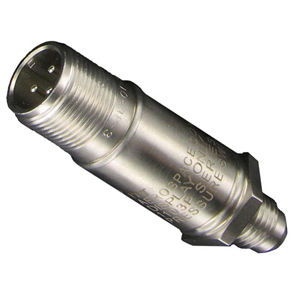

Miniature pressure switch 1103P
for aircraft

miniature pressure switch
miniature pressure switch
Add to favorites
Compare this product


Characteristics

Other characteristics
miniature
Domain
for aircraft
Pressure range

Min.: 5 psi

Max.: 105 psi

Description

Product Description Miniature Pressure Switch. Set point, 5 to 105 psig. Deadband, 3.5 psi or 15%, whichever is greater, to 45% of the set point. Proof pressure, up to 300 psig. - This vented gage switch with welded stainless steel construction is designed for the most hostile vibration, shock, and temperature conditions. Specifications - Set point range from 5 to 105 psig - Deadband range from 3.5 psi or 15%, - whichever is greater, to 45% of the set point - Proof pressure up to 750 psig - Pressure capable all stainless steel, - heliarc welded and leak proof to - 1 x 10-0 SCC/SEC - SPDT snap action switch element - Temperature Range - Amibient -65ºF to +275ºF (-54ºC to +135ºC) - Media -65ºF to +400ºF (-54ºC to +204ºC) Vibration capabilty to 15G’s
