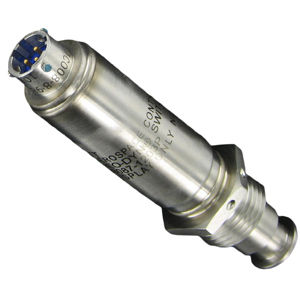

Relative pressure switch 1203P
miniaturefor aircraft

relative pressure switch
relative pressure switch
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Other characteristics
miniature
Domain
for aircraft
Pressure range

Max.: 300 psi

Min.: 5 psi

Description

Product Description Miniature Pressure Switch. Set point, 500 to 3500 psig. Deadband, 100 psi or 10%, whichever is greater, to 45% of the set point. Proof pressure, up to 4500 psig. - This piston sensor design specially serves hydraulic applications. Its welded stainless steel construction accommodates the most hostile vibration, shock, and temperature conditions. Specifications - Set point range from 500 to 3500 psig - Deadband range from 100 psi or 10%, whichever is greater, to 45% of the set point - Proof pressure up to 4500 psig - SPDT snap action switch element - Temperature Range - Ambient -65°F to +275°F (-54°C to +135°C) - Media -65°F to +400°F (-54°C to +204°C) - Vibration capability to 15G’s
