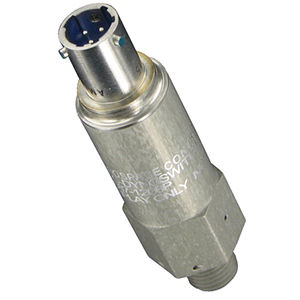

Miniature pressure switch 1206P
for aircraft

miniature pressure switch
miniature pressure switch
Add to favorites
Compare this product


Characteristics

Other characteristics
miniature
Domain
for aircraft
Pressure range

Min.: 40 psi

Max.: 2,400 psi

Description

Miniature Pressure Switch. Set point, 40 to 2400 psig. Deadband, 20 psi or 10%, whichever is greater, to 45% of the set point. Proof pressure, up to 4500 psig. - This switch is a piston sensor design with compact aluminium construction for vibration, shock & surge resistance. Especially suitable for hydraulic applications requiring million-PSI rise rates per second. Specifications - Set point range from 40 to 2400 psig - Deadband range from 20 psi or 15%, whichever is - greater, to 45% of the set point - Proof pressure up to 4500 psig - SPDT snap action switch element - Temperature Range - Ambient -65°F to +275°F (-54°C to +135°C) - Media -40°F to +275°F (-40°C to +135°C) - Vibration capability to 15G’s

Catalogs

No catalogs are available for this product.

See all of ITT‘s catalogs
