Differential pressure switch 1153P
miniaturefor aircraft

differential pressure switch
differential pressure switch
Add to favorites
Compare this product


Pressure type
Other characteristics
for aircraft
Pressure range

Max.: 105 psi

Min.: 5 psi

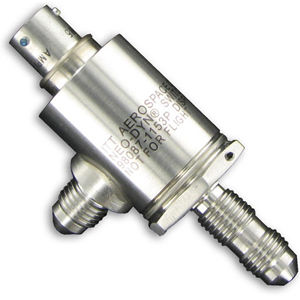

Product Description Miniature Differential Pressure Switch. Set point, 5 to 105 psid. Deadband, 3.5 psi or 15%, whichever is greater, to 45% of the set point. Proof pressure, up to 300 psig hi over lo simultaneous. - This switch has welded stainless steel construction and is designed for the most hostile vibration, shock, and temperature conditions. Specifications - Set point range from 5 to 105 psid - Deadband range from 3.5 psi or 15%, whichever is greater, to 45% of the set point - Proof pressure up to 300 psig - Hi over lo simultaneous - Pressure capsule all stainless steel, heliarc welded andleak proof to 1 X 10-9SCC/SEC - SPDT snap action switch element - Electrical assembly hermetically sealed per MIL-HDBK-5400 Para. 3.8 - Temperature Range: - Ambient-65°F to +275°F (-54°C to +135°C) - Media-65°F to +400°F (-54°C to +204°C) - Vibration capability to 15G’s
