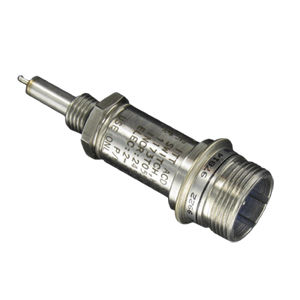

Air valve 1173Ttemperature controlfor aircraftminiature
Add to favorites
Compare this product
Characteristics
- Media
- for air
- Function
- temperature control
- Applications
- for aircraft
- Other characteristics
- miniature, calibration
- Temperature range
Max.: 135 °C
(275 °F)Min.: -54 °C
(-65.2 °F)
Description
Miniature Temperature Switch. Set Point, -40°F to +550°F. Calibration Tolerance, ± 10°F. Deadband, from 7°F minimum. Proof pressure, up to 1500 psig. - This hermetically sealed switch with welded stainless steel construction features a saturated vapor probe thermal system to achieve quick response and repeatable set points.
Specifications
- Set point range from: -40°F to +550°F (-40°C to +288°C)
- Calibration tolerance ±10°F
- Deadband range from 7°F minimum
- Probe proof temperature up to 100°F above set point or 600°F maximum
- Probe proof pressure up to 1500 psig
- SPDT snap action switch element
- Electrical chamber hermetically sealed per MIL-HDBK-5400 Para. 3.8
- Temperature Range
- Ambient -65°F to +275°F (-54°C to +135°C)
- Vibration capability to 15G’s
- Time constant less than 10 seconds
