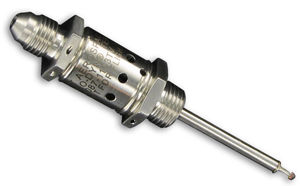

air valve / temperature control / for aircraft / normally closed
Series 1103TV

{{requestButtons}}

Characteristics

  • Media:

    for air

  • Function:

    temperature control

  • Applications:

    for aircraft

  • Other characteristics:

    normally closed, miniature, calibration

  • Pressure:

    Min.: 0 psi

    Max.: 200 psi

  • Temperature range:

    Min.: 0 °C (32 °F)

    Max.: 399 °C (750.2 °F)

Description

Product Description
Miniature Temperature Valve. Set Point, +80°F to +550°F. Calibration Tolerance, whichever greater, ± 10°F or ±2% of the set point. Deadband, freon 15°F to 75°F maximum. Proof pressure, up to 1500 psig. - This normally closed air valve with welded stainless steel construction features a saturated vapor thermal system.

Specifications
- Set point range from: +80°F to +550°F (+27°C to +288°C)
- Calibration tolerance, whichever is greater, ±10°F or ±2% of the set point
- Designed for flow to atmosphere applications
- Deadband range from 15°F minimum to 75°F maximum
- Probe proof temperature up to 100°F above set point or 600°F maximum
- Probe proof pressure up to 1500 psig
- Valve pressure range from 0 to 200 psig
- Valve temperature range up to 750°F (399°C)
- Vibration capability to 15G’s
