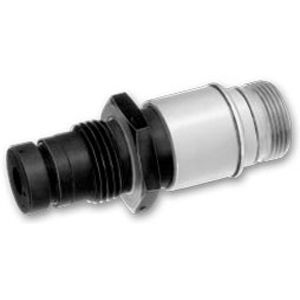

Differential pressure switch 1156P
miniaturefor aircraft

differential pressure switch
differential pressure switch
Add to favorites
Compare this product


Pressure type
Other characteristics
for aircraft
Pressure range

Max.: 280 psi

Min.: 7 psi


Product Description Miniature Differential Pressure Switch. Set point, 7 to 280 psid. Deadband, 5 psi or 10%, whichever is greater, to 45% of the set point. Proof pressure, up to 3000 psig. - This switch has compact aluminum construction for pneumatic, fuel and moderate hydraulic applications and to insure vibration, shock & surge resistance. Specifications - Set point range from 7 to 280 psid - Deadband range from 5 psi or 10%, whichever is greater, to 45% of the set point - Proof pressure up to 3000 psig - High side only - SPDT snap action switch element - Electrical assembly hermetically sealed per - MIL-HDBK-5400 Para. 3.8 - Temperature Range - Ambient -65°F to +275°F (-54°C to +135°C) - Media -65°F to +400°F (-54°C to +204°C) Vibration capability to 15G’s
