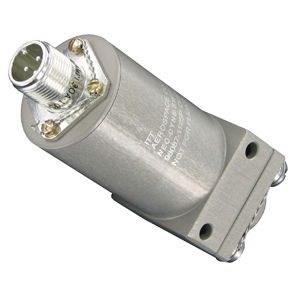

Miniature pressure switch 1125P
for aircraft

miniature pressure switch
miniature pressure switch
Add to favorites
Compare this product


Characteristics

Other characteristics
miniature
Domain
for aircraft
Pressure range

Min.: 40 psi

Max.: 3,000 psi

Description

Product Description Pressure Switch. Set point, 40 to 3000 psig. Deadband, 5 psi or 8%, whichever is greater, to 45% of the set point. Proof pressure, up to 7500 psig. - This vented gage mid range pressure switch is designed for narrow deadband high pressure pneumatic applications. Specifications - Set point range from 40 to 3000 psig - Deadband range from 5 psi or 8%, - whichever is greater, to 45% of the set point - Proof pressure up to 7500 psig - SPDT snap action switch element - Temperature Range - Ambient -65°F to +275°F (-54°C to +135°C) - Media -65°F to +300°F (-54°C to +149°C) - Vibration capability to 10G’s
