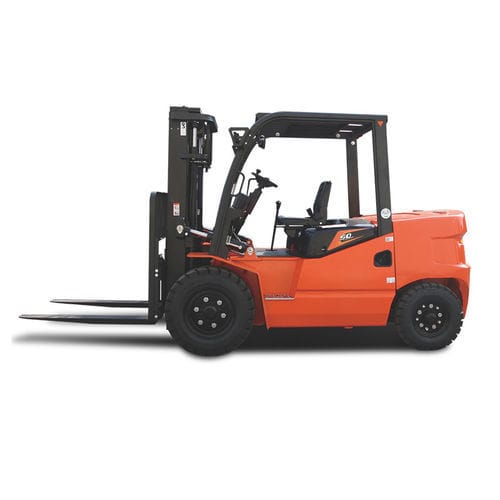

Diesel forklift CM-DF5T-A

ride-on4-wheelfor airport

Product overview
The A series 4–5 t internal combustion forklift integrates safety, reliability, efficiency and operator comfort. Developed from CheersMetal experience in IC forklifts, the range supports multiple diesel engine options and configurations for industrial handling tasks.

Key configuration

• Multiple low-emission diesel engines available, including Quanchai V35-88C41 and Mitsubishi S6S variants.
• Reinforced drive axle and cast steering axle for increased durability.
• Gearbox options: mechanical with hydraulic assist or full hydraulic transmission.

Design and reliability

• Hydraulic braking system upgrade for improved braking response and comfort.
• Lengthened wheelbase increases load-bearing capacity by approximately 5%.
• Enlarged high-position air intake grille for improved engine breathing.
• Large LCD instrument panel for comprehensive vehicle status monitoring.
• Mast portal channel steel in high-strength alloy for higher chain tensile strength.

Energy-efficient systems

• Increased hydraulic pipeline diameter and optimized joint layout to extend component life.
• Dual pump merging technology on hydraulic variants for energy efficiency.
• Standard LED combination lights for lower consumption and long service life.
• Load-sensing priority steering to reduce energy loss.

Cooling, maintenance and control

• Optimized heat dissipation duct and larger aluminum plate-fin radiator for improved cooling.
• Standard air filter alarm to prompt timely maintenance.
• Improved double-thread locking mechanism for easier adjustment.
• Intelligent shifting system to prevent starting in second gear on hydraulic models.

Operator comfort

• Optimized brake and accelerator pedals for reduced fatigue.
• Smaller-diameter steering wheel to lower operating effort.
• Anti-slip metal pedals and ergonomic layout for comfortable long shifts.

Specifications

• Manufacturer: CheersMetal
• Model examples: CPC(D)40-AQ2, CPC(D)45-AQ2, CPC(D)50-AQ2; alternate: CPCD40-AS3, CPCD45-AS3, CPCD50-AS3
• Rated load: 4000 / 4500 / 5000 kg
• Load center: 500 mm; Fork size (s/e/l): 1070/150/50 mm
• Lifting height: 3000 mm (3050 mm including fork thickness); Free lift: 150 mm
• Mast retracted height: 2250 mm; Mast expansion height: 4300 mm
• Total length: 4305 mm; Vehicle length (excl. forks): 3235 mm
• Deadweight: approx. 6350(6550) to 6800(7000) kg depending on variant
• Tyres: pneumatic standard (options: solid rubber, superelastic, polyurethane)
• Engine options: Quanchai V35-88C41 65 kW @ 2200 rpm (National IV); Mitsubishi S6S-G364CSFL 52 kW @ 2300 rpm (Euro A)
• Transmission: Mechanical (Hydraulic) or Hydraulic; Gears: 2/2 (2/1) or 2/1
• Fuel tank: 90 L; Working pressure for attachments: 18.5 MPa; Attachment flow: 60 L/min

Several internal combustion product images are provided on the page as photographic references.
