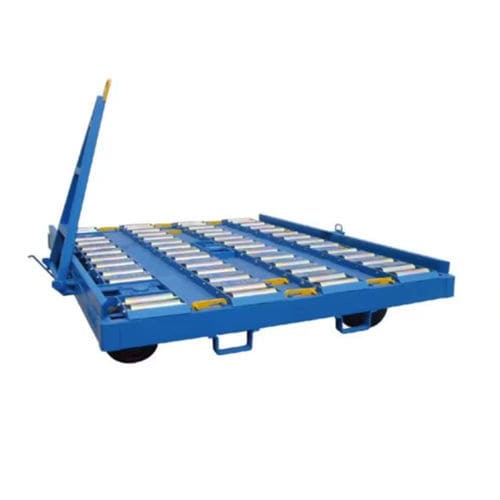

Pallet dolly BC070K(B)

LD2LD1towing

Introduction
An aviation pallet dolly trailer, also known as an aircraft cargo dolly trailer or aircraft pallet trailer, is a specialized type of ground support equipment used at airports to transport and handle aviation pallets, containers, and other cargo units. These trailers are designed to be towed by tug vehicles and provide efficient means of transporting cargo between storage areas, aircraft, and cargo handling facilities.

Product Description
Main function
For transportation of P1P/P6P/LD1/LD2

SPECIFICATION OF PALLET DOLLY
Load Side — Max Payload(kg): 7000
Tare(Kg): 1352
Wheel base(mm): 1660
Overall dim(mm): 4373(L)*3376(W)*1920(H)
Platform Height(mm): 508-518
Towbar height dropped position(mm): 661
Length Between Tyres(mm): 2400mm
Rear wheels(mm): 400*100
Front Wheels(mm): 400*100
Roller dia(mm): 76
Max speed(Km/h): 25
Min turn radius(mm): <=4500

Feature

• Tyre: solid cushion for long life
• Restraint/Stoppers: Stoppers at both ends for side guides & restraints for positive locking
• 2 Stoppers each at both ends for side guides
• Tow hitch at rear end for multi-dolly towing linkage
• Galvanized rollers and chequered plate walkways
• Tow bar for multi-dolly linkage & brake functions
• Fork tynes at both sides to support forklift handling
• Powered brush or blast & optional finish paints
• Unit ID number pad available on request

Our Company
Our company covers an area of 40,000 square meters, with more than 20,000 square meters of production workshops and more than 4,000 square meters of office buildings. Currently, the company has employed about 70 workers, including 5 engineering technicians and 2 professor-level senior engineers. Since its establishment, the company has developed for more than 20 years along with the development of China's civil aviation, and has formed the airport ground equipment, airport logistics equipment and air containers three series, covering a total of more than 50 varieties of products. Some air containers have obtained national and international airworthiness certifications.

caractéristiques / spécifications techniques

• Model: BC070K(B)
• Brand: CHEERSMETAL
• Max Payload (kg): 7000
• Tare (kg): 1352
• Wheel base (mm): 1660
• Overall dimensions (mm): 4373 (L) * 3376 (W) * 1920 (H)
• Platform Height (mm): 508-518
• Towbar height (dropped position) (mm): 661
• Length Between Tyres (mm): 2400
• Rear wheels (mm): 400 * 100
• Front wheels (mm): 400 * 100
• Roller diameter (mm): 76
• Max speed (Km/h): 25
• Min turn radius (mm): <=4500
