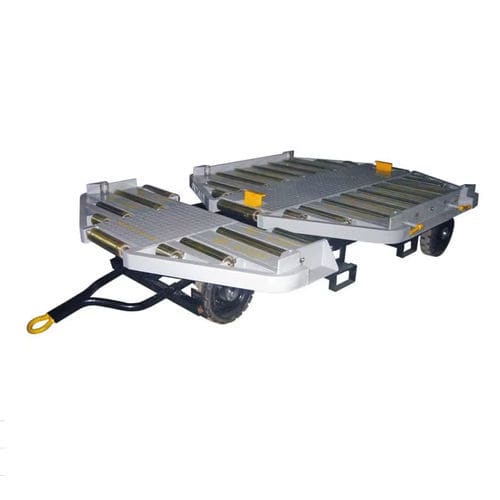

Container dolly CM-AGE-ACD

pallettowing2-axle

Introduction
An aircraft pallet/container dolly is a purpose-built ground support equipment (GSE) used in airport cargo operations to move aviation pallets, containers and Unit Load Devices (ULDs) between storage areas, aircraft and handling zones. This model is designed for operations requiring compatibility with ULDs and pallets with base sizes under 20 feet, offering configurable towing and loading orientations for airline and ground handler workflows.

Key features

• Cargo transport: Built to carry aviation pallets, containers and ULDs common in commercial and freighter operations.
• Compatibility: Configurable interface to suit multiple aircraft types and ULD standards for flexible ground handling.
• Loading/unloading: Platform height optimized for efficient transfer to/from aircraft and storage positions.
• Customization: Tailor-made design options available for towing direction, loading orientation and ULD locking requirements.
• Load variants: Multiple capacity options to match operational needs (examples: 7 t, 13 t, 18 t, 27 t, 30 t, 35 t).
• Designed for base sizes below 20 feet to fit standard aviation pallet/container dimensions.

Main function
The pallet dolly CM-AGE-ACD is engineered to load and transport aviation containers and pallets with base sizes under 20 feet. Design and technical support can be provided according to towing direction, loading orientation and specific ULD requirements. Available capacity variants allow selection according to payload and airport handling profiles.

Technical table
Load position: rear — Max payload (kg): 1600
Tare (kg): 830 — Wheelbase (mm): 1830
Overall dimensions (mm): 275 (L) * 1860 (W) * 565 (H) — Platform height (mm): 508–518
Towbar height (dropped position) (mm): 565 — Front wheels (mm): 380 x 100
Rear wheels (mm): 380 x 110 — Minimum turning radius (mm): <= 3000

Product Description / Notes
Gallery images show typical dolly configurations for pallet and container handling. CHEERSMETAL provides tailoring options and capacity variants to suit operator requirements, including modifications to towing fittings and loading devices for compatibility with specific ULD systems.

Technical specifications

• Model: CM-AGE-ACD
• Brand: CHEERSMETAL
• Max payload: 1600 kg
• Tare weight: 830 kg
• Wheelbase: 1830 mm
• Overall dimensions: 275 mm (L) * 1860 mm (W) * 565 mm (H)
• Platform height: 508–518 mm
• Towbar dropped height: 565 mm
• Front wheels: 380 x 100 mm
• Rear wheels: 380 x 110 mm
• Minimum turning radius: <= 3000 mm
• Typical available load capacity variants: 7 t, 13 t, 18 t, 27 t, 30 t, 35 t
