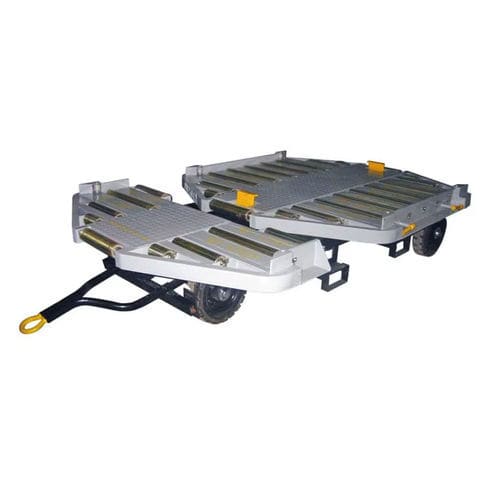

Container dolly XC(D)016

pallet2-axlefor air cargo

Short info
Color: Customized. MOQ: 1 SET.

Introduction
Aviation pallet dollies are essential ground support equipment for efficient movement of ULDs and containers between storage areas and aircraft. The XC(D)016 is engineered for secure handling of LD3 containers and similar units, supporting airport cargo workflows and fast turnaround operations.

Key features

• Cargo transport: Designed specifically to carry LD3 containers, ULDs (Unit Load Devices), pallets and other aviation cargo units.
• Compatibility: Built to interface with common aircraft cargo loading systems and airport ground handling equipment.
• Ergonomics: Platform and towbar heights are optimized for easy loading/unloading and safe tow operations.

Main function

• Designed to load series of aviation containers and pallets with base sizes below 20 feet.
• Tailor design and technical support available according to towing direction, loading direction and ULD loading requirements.
• This model (XC(D)016) has a max payload of 1600 kg; other models in the range offer higher capacities (examples: 7 t, 13 t, 18 t, 27 t, 30 t, 35 t) to match different operational needs.

Technical specifications

• Model: XC(D)016
• Brand: CHEERSMETAL
• Code: XC(D)016
• Max Payload (kg): 1600
• Tare (kg): 830
• Wheel base (mm): 1830
• Overall dim (mm): 275(L) * 1860(W) * 565(H)
• Platform Height (mm): 508-518
• Towbar height (dropped position) (mm): 565
• Front Wheels (mm): 380 * 100
• Rear Wheels (mm): 380 * 110
• Min turn radius (mm): <= 3000
