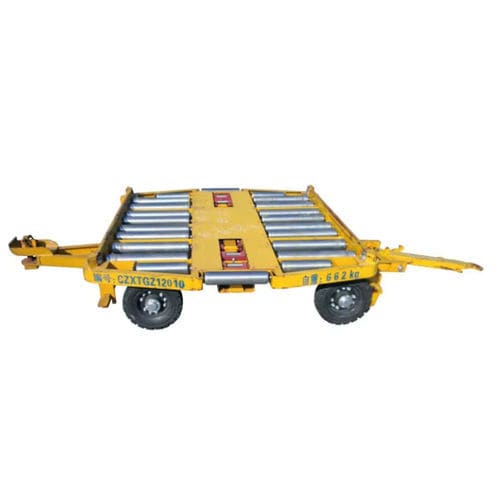

Container dolly XC(D)016

palletLD2LD3

Introduction
Airport pallet dollies are essential for moving unit load devices (ULDs) and other cargo between storage areas and aircraft. The XC(D)016 model is engineered for ground support operations and provides secure transfer of LD1/LD2/LD3 containers within airport ramp environments.

Key features

• Maintenance: Regular maintenance is necessary to ensure proper functioning and safety.
• Versatility: Handles a wide range of cargo types and container sizes including LD1/LD2/LD3.
• Weight capacity: Designed for specified payloads with options up to 27,000 kg.

Product Description
Main function
For transportation of LD1/LD2/LD3 with payload of 1.6 Ton.

FEATURES

• Tyre: solid cushion for long life
• Restraints/Stoppers: Stoppers at both ends for side guides & restraints for positive locking
• 2 Stoppers each at both ends for side guides
• Tow hitch at rear end for multi-dolly toweling linkage
• Galvanized rollers chequered plate walkways
• Tow bar for multi-dolly linkage & brake functions
• Fork tynes at both sides support forklift handling
• Powered brush or blast & user's optional finish paints
• Unit ID number pad at request

SPECIFICATION OF PALLET DOLLY
Load / Side/rear / Max Payload(kg): 1600/7000/18000/27000
Tare (Kg): 1103/1450/1352
Wheel base (mm): 1600/2060
Overall dim (mm): 4109 (L) * 3400 (W) * 1563 (H)
Platform Height (mm): 508-518
Towbar height dropped position (mm): 606-625
Length Between Tyres (mm): 1960-2484
Rear wheels (mm): 400*100
Front Wheels (mm): 400*100
Roller dia (mm): 76
Max speed (Km/h): 25
Min turn radius (mm): <=4500

Technical specifications

• Model: XC(D)016
• Brand: CHEERSMETAL
• Code: XC(D)016
• Max Payload (examples shown): 1600 / 7000 / 18000 / 27000 kg
• Tare options (Kg): 1103 / 1450 / 1352
• Wheel base (mm): 1600 / 2060
• Overall dimensions (mm): 4109 L × 3400 W × 1563 H
• Platform height (mm): 508–518
• Towbar dropped height (mm): 606–625
• Length between tyres (mm): 1960–2484
• Wheels: Front 400×100 mm, Rear 400×100 mm
• Roller diameter (mm): 76
• Max speed: 25 km/h
• Min turning radius: ≤ 4500 mm
