Pallet trolley ACD-70-RSX

handlingtransferfor containers

Product description
This dolly is designed for ground handling of aviation pallets and containers (ULDs). It provides a platform and roller system to facilitate loading, transfer and short-distance movement on the apron.

Frame mechanism

• Material: channel steel (16#, 12#, 10#) for the main frame.
• Frame noted size: 3200 mm × 2650 mm.

Roller mechanism

• Durable roller assembly for repeated handling operations.
• Rollers: φ76 mm × 4 mm seamless steel pipe with galvanized surface treatment.
• Number of rollers: 48.

Specification

• A — Overall size: 4870 mm × 2650 mm × 620 mm
• B — Platform size: 3340 mm × 2650 mm × 515 mm
• C — Rated speed: 25 km/h
• D — Maximum load: 7000 kg
• E — Weight: around 1100 kg

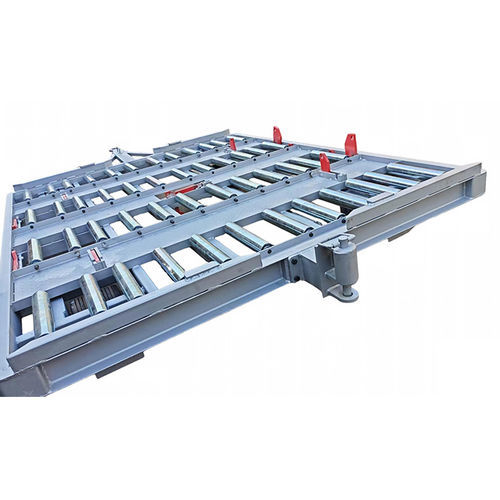

Product picture
Multiple product images available showing different views of the aviation pallet/container dolly to assess platform, rollers and frame details.

Technical data

• Model: ACD-70-RSX
• Brand: CHEERSMETAL
• Application: Loading aviation pallets and containers (apron ground handling)
• Frame material: 16#, 12#, 10# channel steel
• Frame size (noted): 3200 mm × 2650 mm
• Overall dimensions: 4870 mm × 2650 mm × 620 mm
• Platform dimensions: 3340 mm × 2650 mm × 515 mm
• Roller: φ76 mm × 4 mm seamless steel pipe, galvanized
• Number of rollers: 48
• Rated speed: 25 km/h
• Maximum load capacity: 7000 kg
• Approximate weight: 1100 kg
