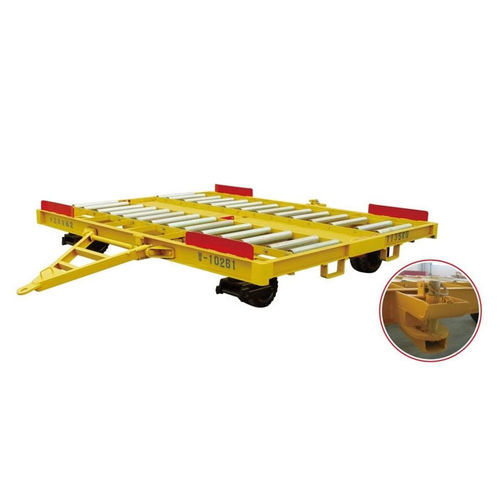

Pallet dolly BC070I

2-axlefor air cargofor airport

Introduction
Airport pallet dollies are used to move Unit Load Devices (ULDs) and cargo between storage areas and aircraft on the apron. Designed for ground support in aviation, this dolly ensures organised, compatible handling of standard ULD types and supports efficient ramp operations.

Key features

• Mobility: Wheel configuration and solid-cushion tyres allow easy movement on apron surfaces.
• Towing capability: Tow hitch and towbar enable single-vehicle or multi-dolly towing linkage for longer transfers.
• Operator handling: Controls and brake linkage facilitate safe steering and maneuvering during ramp operations.

Features

• Tyres: solid cushion type for extended service life on apron surfaces.
• Restraints / stoppers: End stoppers and side guides with positive locking for secure ULD positioning.
• Tow hitch: Rear tow hitch for multi-dolly towing linkage and integrated brake functions.
• Rollers & walkways: Galvanized rollers and chequered plate walkways for corrosion resistance and safe footing.
• Fork pockets: Fork tynes at both sides for forklift handling and integration into yard workflows.
• Finishes & options: Powered brush/blast treatment and optional protective paints; unit ID number pad available on request.

Product Description
Main function: For transportation of P1P / P6P / LD1 / LD2 ULDs between warehouse and aircraft apron.

Specification of pallet dolly

• Model: BC070I
• Brand: CHEERSMETAL
• Max payload: 7000 kg
• Tare (weight): 1103 kg
• Wheel base: 1600 mm
• Overall dimensions: 4109 mm (L) × 3400 mm (W) × 1563 mm (H)
• Platform height: 508–518 mm
• Towbar height (dropped position): 625 mm
• Length between tyres: 2484 mm
• Rear wheels: 350 × 100 mm
• Front wheels: 320 × 125 mm
• Roller diameter: 76 mm
• Maximum speed: 25 km/h
• Minimum turning radius: ≤4500 mm
