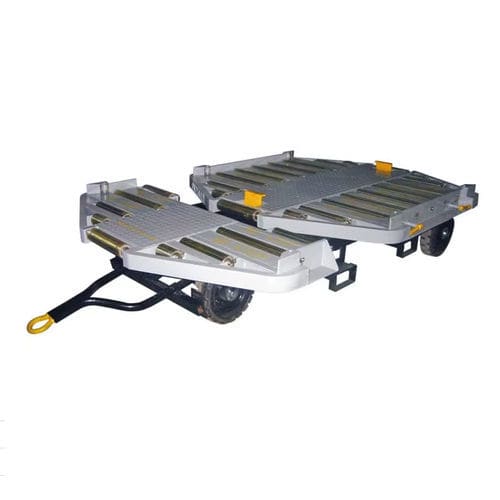

Pallet dolly XC(D)016

LD2LD3LD1

Introduction
Airport pallet dollies are ground support equipment designed to move Unit Load Devices (ULDs), pallets and containers between storage areas and aircraft, streamlining cargo flow in airside operations.

Key features

• Cargo transport: Designed for ULDs, LD1/LD2/LD3 containers, pallets and large cargo units.
• Compatibility: Configured for use with standard aircraft handling procedures and multiple ULD types.
• Loading and unloading: Platform height and towbar arrangement facilitate efficient transfer to aircraft and storage positions.

Main function
The pallet dolly XC(D)016 is built to carry aviation containers and pallets with a base length below 20 ft. Towing and loading orientations can be tailored to ULD handling requirements; CHEERSMETAL provides custom design and technical support. Available load capacities include 7 tons, 13 tons, 18 tons, 27 tons, 30 tons and 35 tons, with this model specified for a 1600 kg payload.

Technical table
Load position: rear
Max payload (kg): 1600
Tare (kg): 830
Wheel base (mm): 1830
Overall dimensions (mm): 275 (L) * 1860 (W) * 565 (H)
Platform height (mm): 508-518
Towbar height (dropped position) (mm): 565
Front wheels (mm): 380 x 100
Rear wheels (mm): 380 x 110
Minimum turning radius (mm): <=3000

Technical specifications

• Model: XC(D)016
• Brand: CHEERSMETAL
• Code: XC(D)016
• Max payload (kg): 1600
• Tare (kg): 830
• Wheel base (mm): 1830
• Overall dimensions (mm): 275 (L) * 1860 (W) * 565 (H)
• Platform height (mm): 508-518
• Towbar height (dropped position) (mm): 565
• Front wheels (mm): 380 x 100
• Rear wheels (mm): 380 x 110
• Minimum turning radius (mm): <=3000
