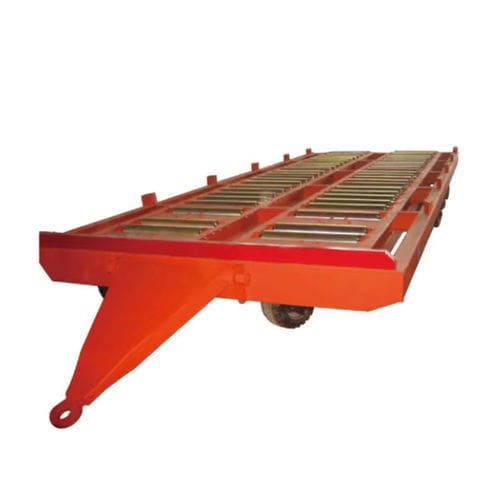

Pallet dolly BC270

towing2-axlefor air cargo

Product Description
An aviation pallet dolly trailer, also called an aircraft cargo dolly or aircraft pallet trailer, is specialized ground support equipment used to transport and handle aviation pallets, containers and other cargo units at airports. Designed to be towed by tugs, it enables efficient transfer of cargo between storage areas, aircraft and cargo handling facilities.

Key functions
For transportation of P1P/P6P/PLA/PRA/P7E pallets with a maximum payload of 27 t.

Key features

• Cargo transport: carries aviation pallets, containers, ULDs (Unit Load Devices) and other common cargo units.
• Towing capability: compatible with airport tugs for apron and ramp transport.
• Wheels and mobility: equipped with durable wheels for smooth movement and maneuvering on aprons.
• Structure: heavy-duty channel steel and tube welded framework with galvanized roller-bed floor for easy loading/unloading.
• Stoppers/restraints: end stoppers and side guides for positive locking.
• Tyres: solid cushion tyres for extended service life.
• Tow bar: tow bar designed for multi-dolly linkage.
• Surface finish: power brushing or blasting with optional paint finishes.
• Optional: unit ID number plate on request.

Specification table
SPECIFICATION OF PALLET DOLLY
Load | Rear | Max Payload(kg) | 27000
Overall dim(mm) | 8100(L)*2700(W)*1555(H)
Wheel base(mm) | 4225
Towbar height dropped position(mm) | 616
Platform Height(mm) | 528
Rear wheels(mm) | 380*175
Length Between Tyres(mm) | 1300
Roller dia(mm) | 108
Front Wheels(mm) | 360*175

Additional details
Designed for efficient handling of aviation pallets and containers; the sturdy welded frame and galvanized roller bed facilitate loading and unloading and support towing multiple linked dollies.
