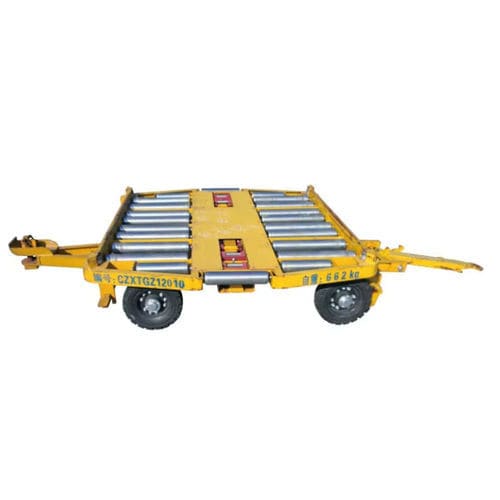

Container dolly CM-AGE-ACD

palletLD2LD3

Introduction
Airport pallet dollies are purpose-designed ground support equipment for moving unit load devices (ULDs) and cargo pallets between storage areas and aircraft. They provide controlled handling, modular towing capability and compatibility with common LD container types to support efficient turnarounds and cargo flow at airports.

Product description
Main function
Transport of LD1 / LD2 / LD3 ULDs. Available payload options: 1.6, 7, 18, 27 t.

Features

• Tyres: solid cushion type for extended service life
• Restraints / stoppers: end stoppers for side guides and positive locking of loads
• Two stoppers at each end for side guide engagement
• Tow hitch at rear for multi-dolly towing linkage
• Galvanized rollers and chequered plate walkways for corrosion resistance and operator access
• Tow bar with multi-dolly linkage and brake functions
• Fork tynes at both sides to support forklift handling
• Surface treatment: powered brush or blast preparation; optional paint finishes
• Unit ID number plate available on request

Technical specifications

• Model: CM-AGE-ACD
• Brand: CHEERSMETAL
• Intended loads: LD1 / LD2 / LD3
• Max payload options (kg): 1600, 7000, 18000, 27000
• Tare (kg): 1103 / 1450 / 1352 (depending on variant)
• Wheel base (mm): 1600 / 2060
• Overall dimensions (mm): 4109 (L) × 3400 (W) × 1563 (H)
• Platform height (mm): 508–518
• Towbar height (dropped position) (mm): 606–625
• Length between tyres (mm): 1960–2484
• Rear wheels (mm): 400 × 100
• Front wheels (mm): 400 × 100
• Roller diameter (mm): 76
• Maximum speed: 25 km/h
• Minimum turning radius (mm): ≤ 4500
