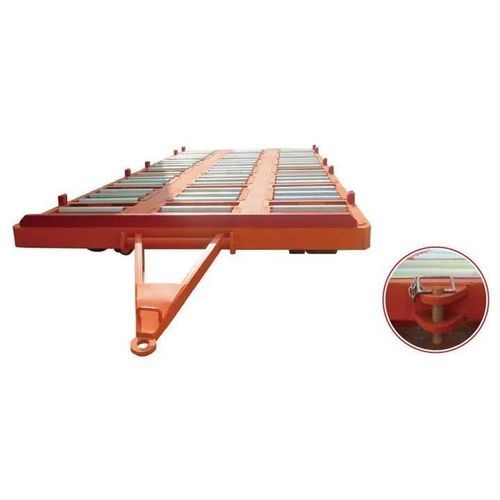

Pallet dolly BC180

2-axlefor air cargofor airport

Introduction
An aviation pallet dolly is ground support equipment used at airports to move and position standardized aircraft pallets and ULDs between storage, handling areas and aircraft. This BC180 model is designed for efficient cargo transfers in commercial and freighter apron operations, compatible with common pallet types P1P, P6P, PLA, PRA and P7E.

Product description
Main function:
Transport of P1P/P6P/PLA/PRA/P7E pallets with a maximum payload of 18 t (18000 kg). Suitable for apron handling, build-up and transfer to aircraft cargo decks.

Technical specification

• Max payload: 18000 kg (18 t)
• Overall dimensions: 7925(L) x 2725(W) x 1636(H) mm
• Wheel base: 4348.5 mm
• Towbar height (dropped): 658 mm
• Platform height: 536 mm
• Rear wheels: 400 x 130 mm
• Front wheels: 260 x 160 mm
• Roller diameter: 89 mm
• Length between tyres: 1925 mm

Features

• Heavy-duty channel profile steel and tube welded framework with galvanized roller bed for corrosion resistance
• Stoppers at both ends for side guides and positive locking restraints
• Solid cushion tyres for extended service life on apron surfaces
• Tow bar configured for multi-dolly linkage to form trains
• Surface treatment by powered brushing or blasting; optional paint finishes available
• Unit ID number pad available on request

Why choose us

• Manufacturer with production capacity and export experience
• Controlled quality process and dedicated R&D team
• After-sales and single-source supply solutions for ground support equipment
• Options and customization to match airport operating requirements

Technical data

• Model: BC180
• Brand: CHEERSMETAL
• Application: Transportation of P1P/P6P/PLA/PRA/P7E pallets at airports
• Max payload: 18000 kg (18 t)
• Overall dimensions: 7925(L) x 2725(W) x 1636(H) mm
• Wheel base: 4348.5 mm
• Towbar height (dropped): 658 mm
• Platform height: 536 mm
• Rear wheels: 400 x 130 mm
• Front wheels: 260 x 160 mm
• Roller diameter: 89 mm
• Length between tyres: 1925 mm
• Construction: Heavy-duty channel profile steel & tube welded framework; galvanized roller bed
• Tyres: Solid cushion type
• Tow bar: For multi-dolly linkage
• Finish: Powered brush or blast; optional paint finishes
