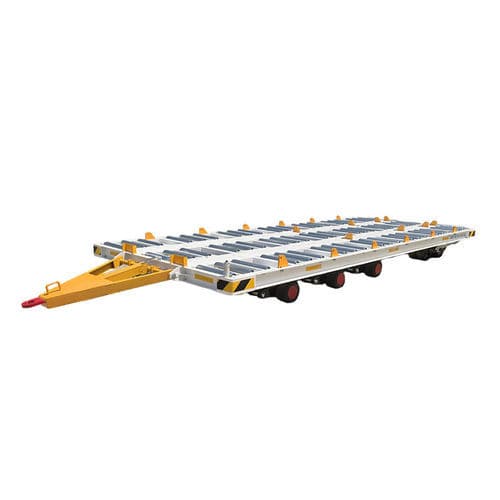

Pallet dolly APD-200

for ULD2-axlefor airport

Product Description

• The trailer platform is fitted with three rows of galvanized rollers (φ89×4 mm), 21 rollers per row; two galvanized rear rollers (φ108×4 mm) assist pallet loading and unloading. Rollers provide smooth rotation, easy handling and good wear and corrosion resistance.
• The main towbar and structural members are welded from national standard channel steel (No.10 and No.16 as specified) to ensure high strength and reliable connections.
• Front wheels are swivel type arranged in four sets (two per side) with dual wheels per set; equipped with 266×160 solid rubber tires allowing free 360° steering in operation.
• Rear wheels are fixed type arranged in two sets (one per side) with four wheels per set; equipped with 400×133 solid rubber tires for long service life.
• Adjustable retaining stops and a fixed front stop extend 100 mm above the roller surface to accommodate various pallet standards. Compatible with pallet types P1P, P6P, PLA, FQA, FQW, PMW, PRA and P7E.

Specification
Overall dimensions: 8080×2720×578 mm
Platform dimensions: 6689×2720×520 mm
Working surface height: 520 mm
Rated travel speed: 25 km/h
Rated load capacity: 20,000 kg
Operating environment: Altitude ≤ 2,000 m
Humidity: ≤ 85%

Chassis & Components

• Chassis frame: National Standard No.16 channel steel (Ma Steel)
• Towbar: National Standard No.10 channel steel (Ma Steel)
• Internal frame rollers: φ89×4 mm seamless steel pipe (21 rollers per row, 3 rows)
• Rear rollers: φ108×4 mm seamless steel pipe (2 rollers)
• Tires — Front: 266×160 solid rubber; Rear: 400×133 solid rubber
• Panel: 3 mm checkered steel plate; Movable baffle: 20 mm steel plate
• Ambient temperature range: -40°C to +60°C; Max wind speed tolerance: ≤45 m/s

Model & Brand

• Model: APD-200
• Brand: CHEERSMETAL

FAQ

• Q: What is an airport cargo pallet dolly used for? A: It is GSE for safe, efficient transport of aviation pallets, ULDs, air freight and baggage across aprons, cargo terminals and warehouses to improve cargo turnover efficiency.
• Q: What cargo and ULDs can this dolly support? A: Compatible with standard civil aviation pallets and mainstream ULDs; suitable for regular air freight, bulk cargo and airline baggage.
• Q: Is this dolly suitable for global airport operations? A: Yes. It conforms to international civil aviation GSE specifications and adapts to mainstream regional standards.

Why Choose Us

• Manufacturer with in-house production and quality control
• Advanced production machinery and inspection equipment
• Dedicated R&D team and experienced sales support
• Export experience and one-stop solution services for logistics customers

Technical specifications

• Overall dimensions: 8080×2720×578 mm
• Platform dimensions: 6689×2720×520 mm
• Working surface height: 520 mm
• Rated travel speed: 25 km/h
• Rated load capacity: 20,000 kg
• Chassis: National Standard No.16 channel steel
• Towbar: National Standard No.10 channel steel
• Rollers: Internal φ89×4 mm; Rear φ108×4 mm seamless steel pipe
• Tires: Front 266×160 solid rubber; Rear 400×133 solid rubber
• Panel: 3 mm checkered steel plate; Movable baffle: 20 mm steel plate
• Operating altitude: ≤ 2,000 m; Humidity ≤ 85%; Ambient temperature -40°C to +60°C; Wind speed ≤45 m/s
