Container dolly ACD-70-SFG

pallet2-axlefor air cargo

Overview
The Airport Pallet Dolly ACD-70-SFG by CHEERSMETAL is a ground support vehicle designed to transport aircraft cargo pallets efficiently across aprons and cargo zones. It features a heavy-duty painted steel frame and an integrated roller bed to simplify pallet loading, shifting and secure towing for continuous airport operations.

Key features

• Heavy-duty channel steel construction (No.16 / No.12 / No.10) for high load resistance
• Integrated roller bed enabling low-effort pallet handling
• Safety latches and red bumper guards to secure pallets and reduce collision risk
• Robust rubber wheels and reinforced towing arm for stable towing at rated speeds

Technical specifications

• Model: ACD-70-SFG
• Brand: CHEERSMETAL
• Overall dimensions: approx. 4000mm × 3400mm × 620mm
• Wheelbase (front-to-rear): approx. 1620mm
• Rated speed: 25 km/h
• Maximum load (rated): 7000 kg
• Curb weight: 1050–1100 kg
• Material: No. 16, No. 12, and No. 10 channel steel

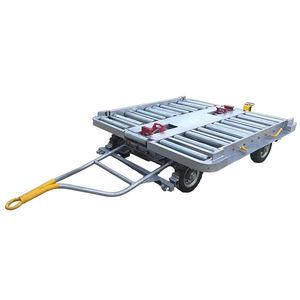

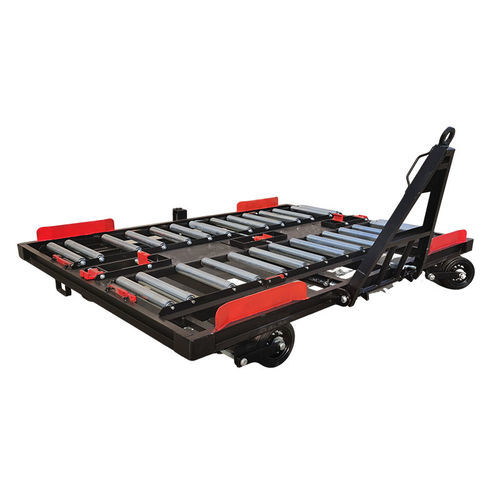

Product images
Images on the product page illustrate the dolly structure, roller bed and towing assembly to help evaluate compatibility with specific ground handling workflows.

Why choose CHEERSMETAL

• Professional manufacturer with advanced production equipment
• Strict quality control and dedicated R&D team
• Global export experience and one-step solution service
• Technical support for airport integration and operator training
